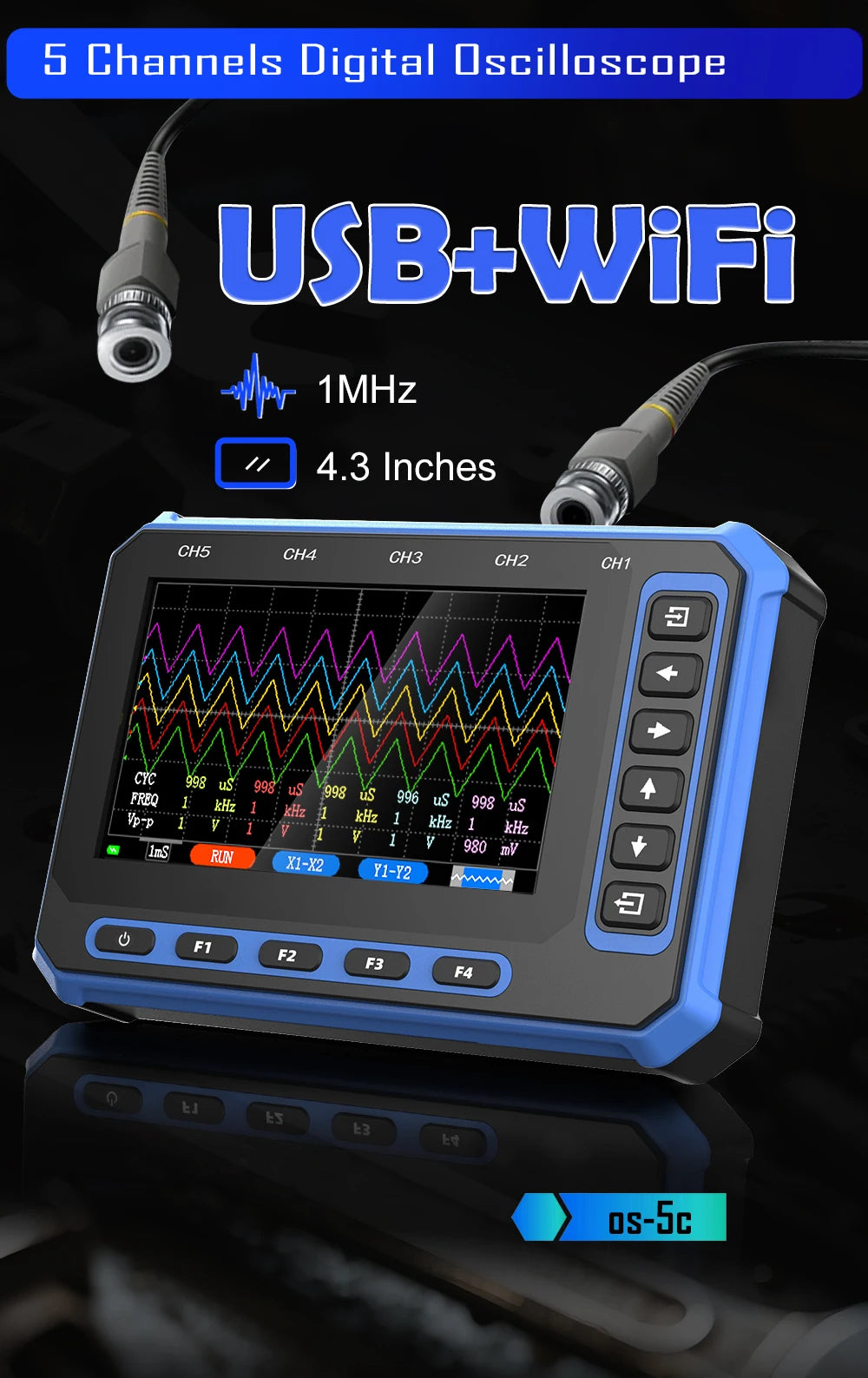

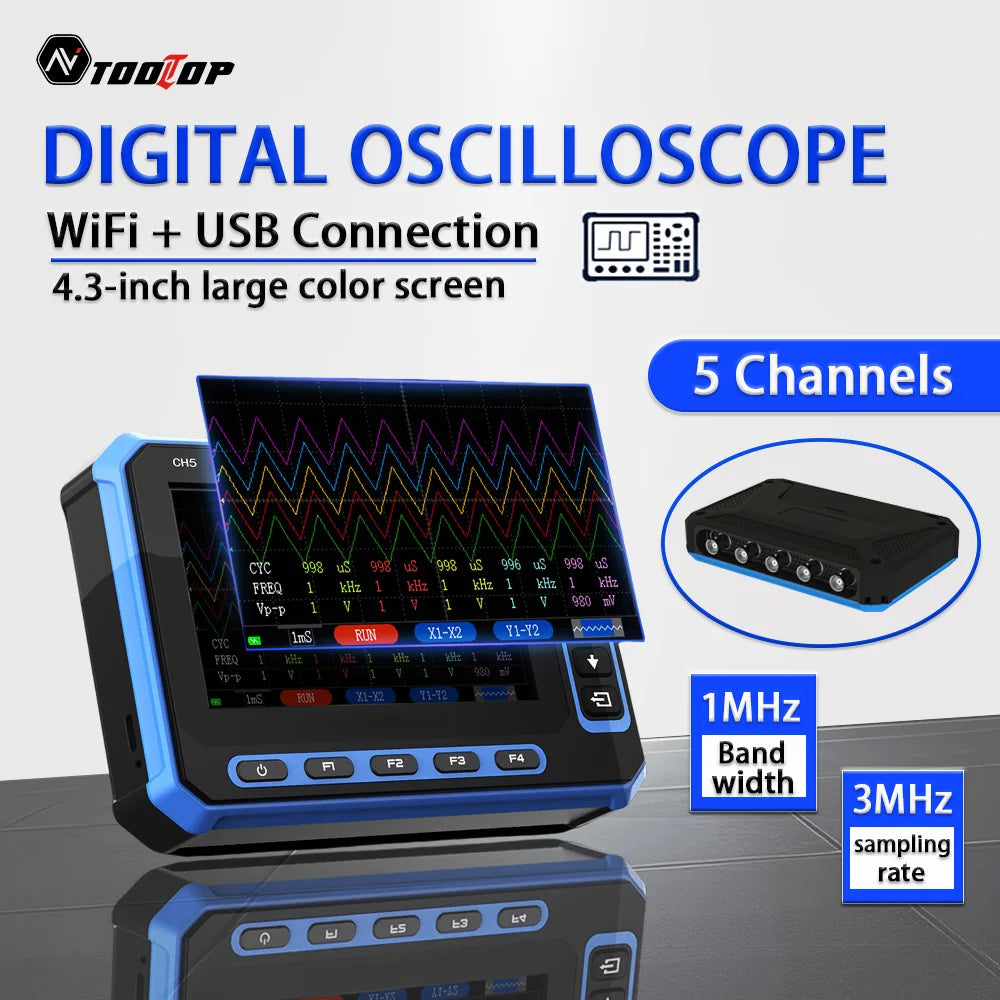

SPECIFICATIONS

Bandwidths: 1MHz

Battery: 3.7V/18650/2000mAH /Removable

Battery Included: Yes

Brand Name: TOOLTOP

DIY Supplies: Electrical

Digital Channels: 5

High-concerned chemical: None

IS Battery Demountable: Yes

Language: English/Chinese/Portuguese/Spanish

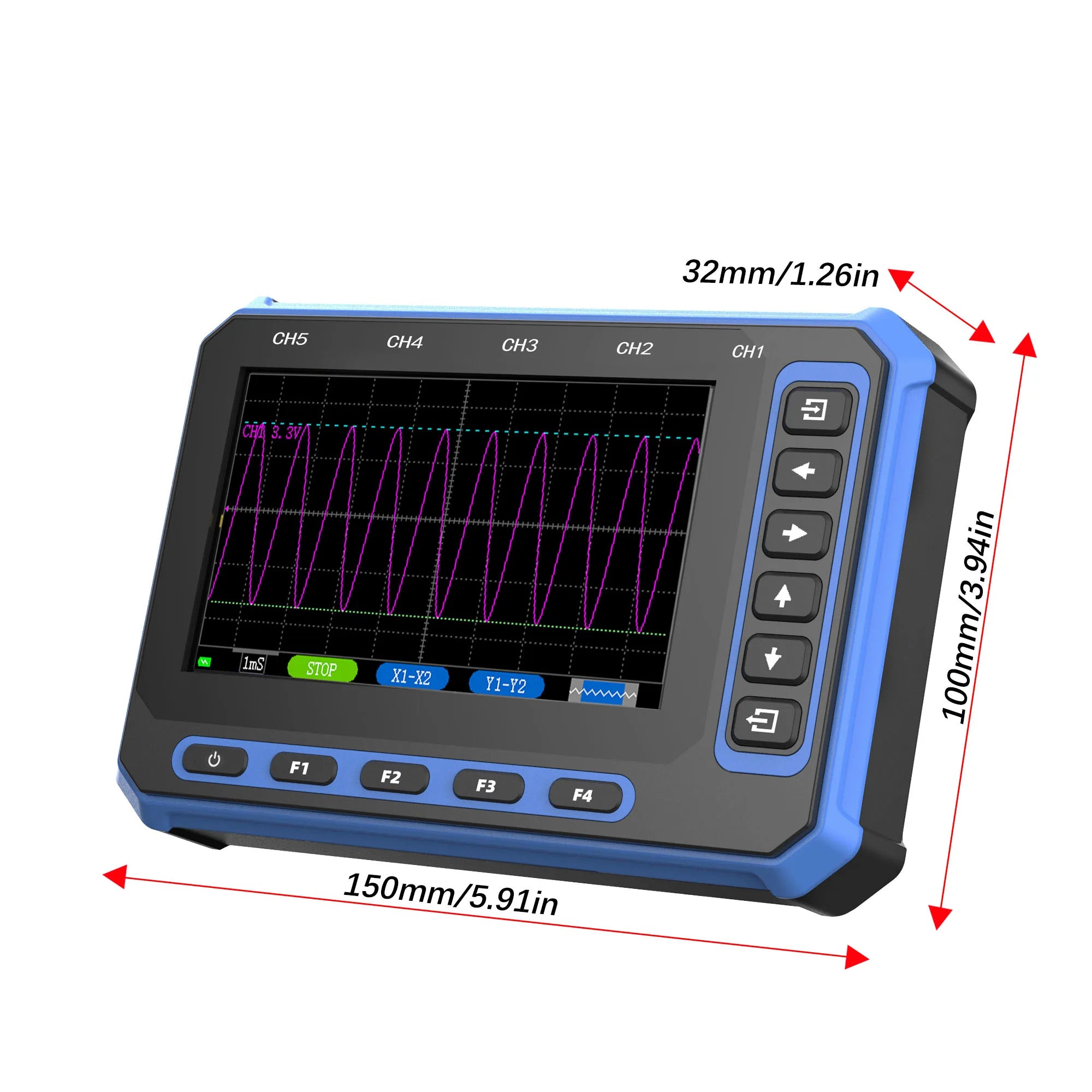

Main unit size: 150mm* 100m*32mm

Maximum measured voltage: ±10V (X10:±100V)

Maximum peak-to-peak voltage: 20V(X10:200V)

Maximum sampling rate: 3MHz*3 / 1.5MHz*4 / 1.5MHz*5

Net weight: 350g

Origin: Mainland China

Radio frequency(Optional WIFI version required): Wi-Fi 2.4G or 5G

Screen: 4.3inch IPS 480*272

Signal output: 1KHz

Trigger Type: Rising Edge / Falling Edge

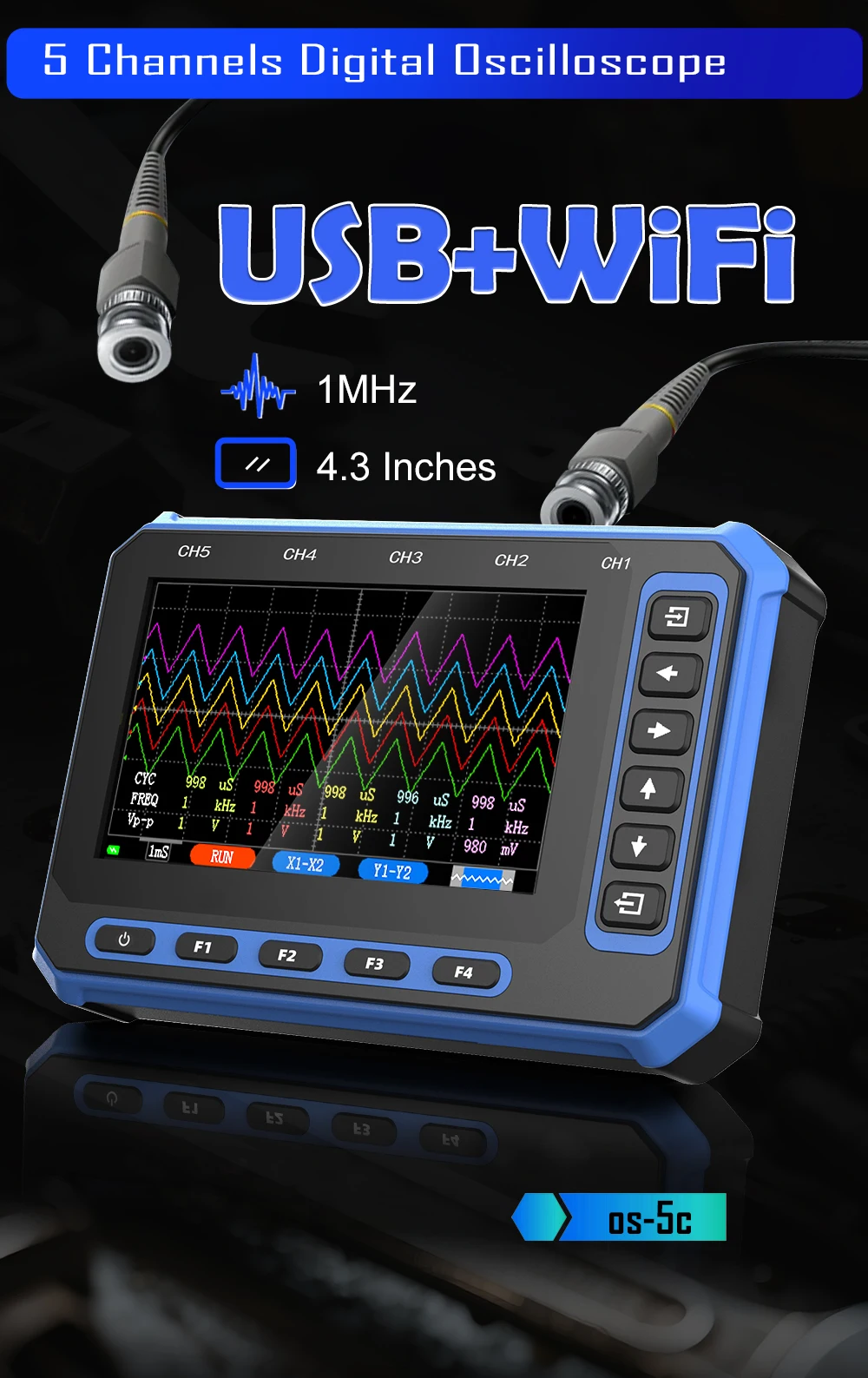

Features:

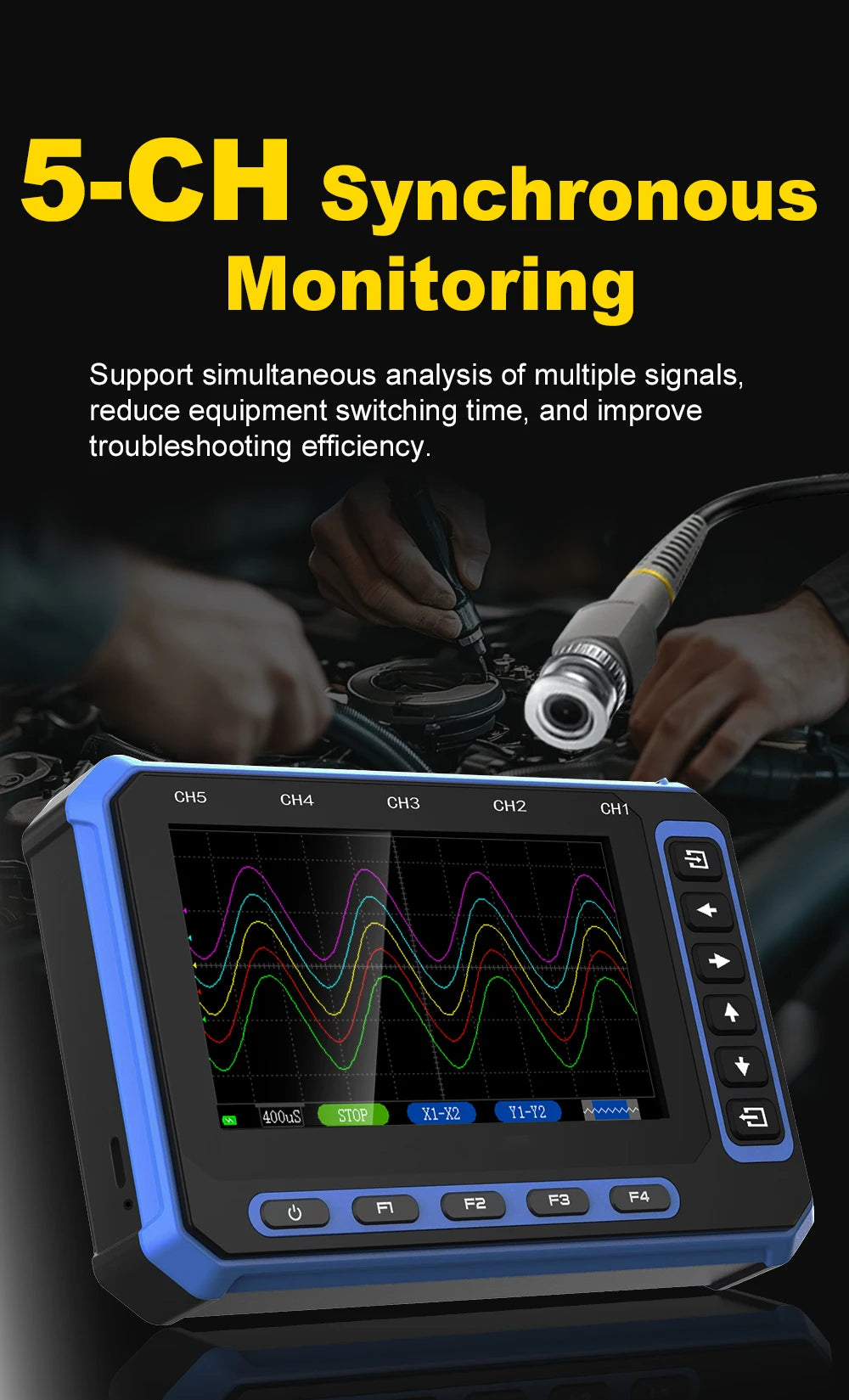

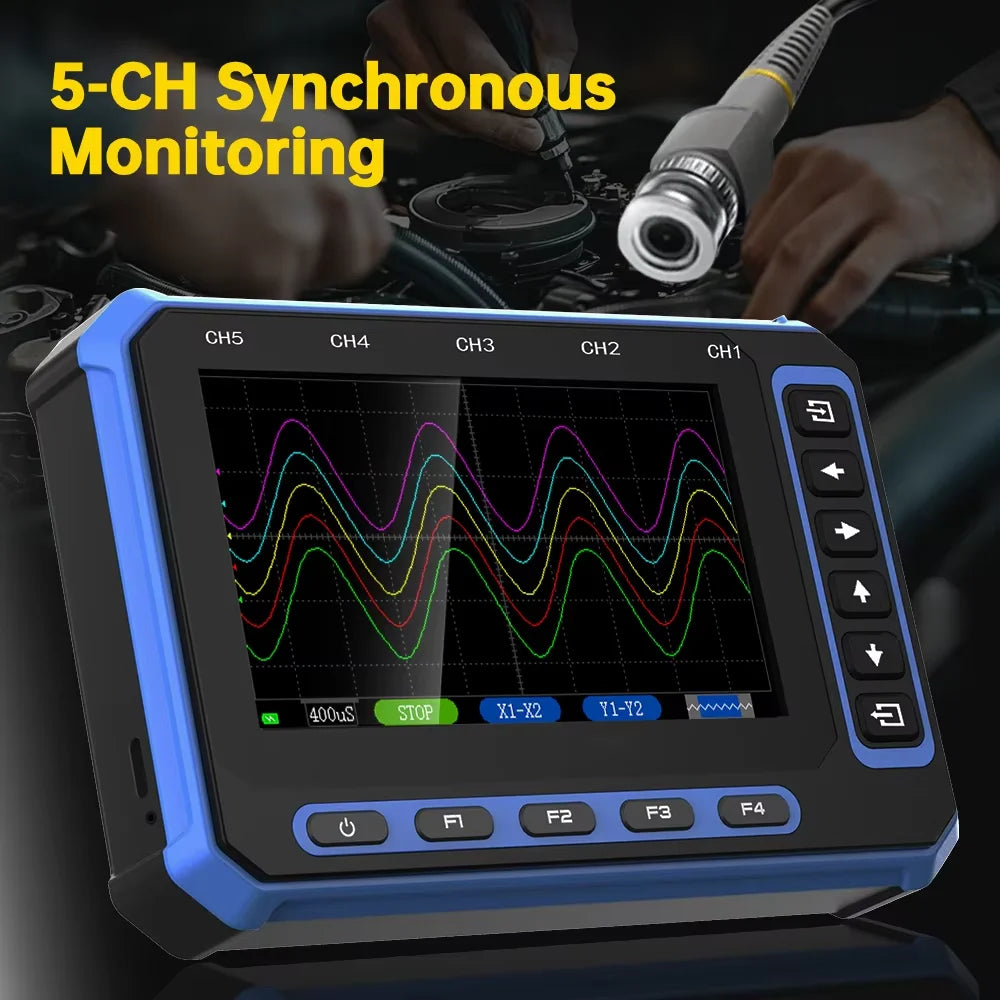

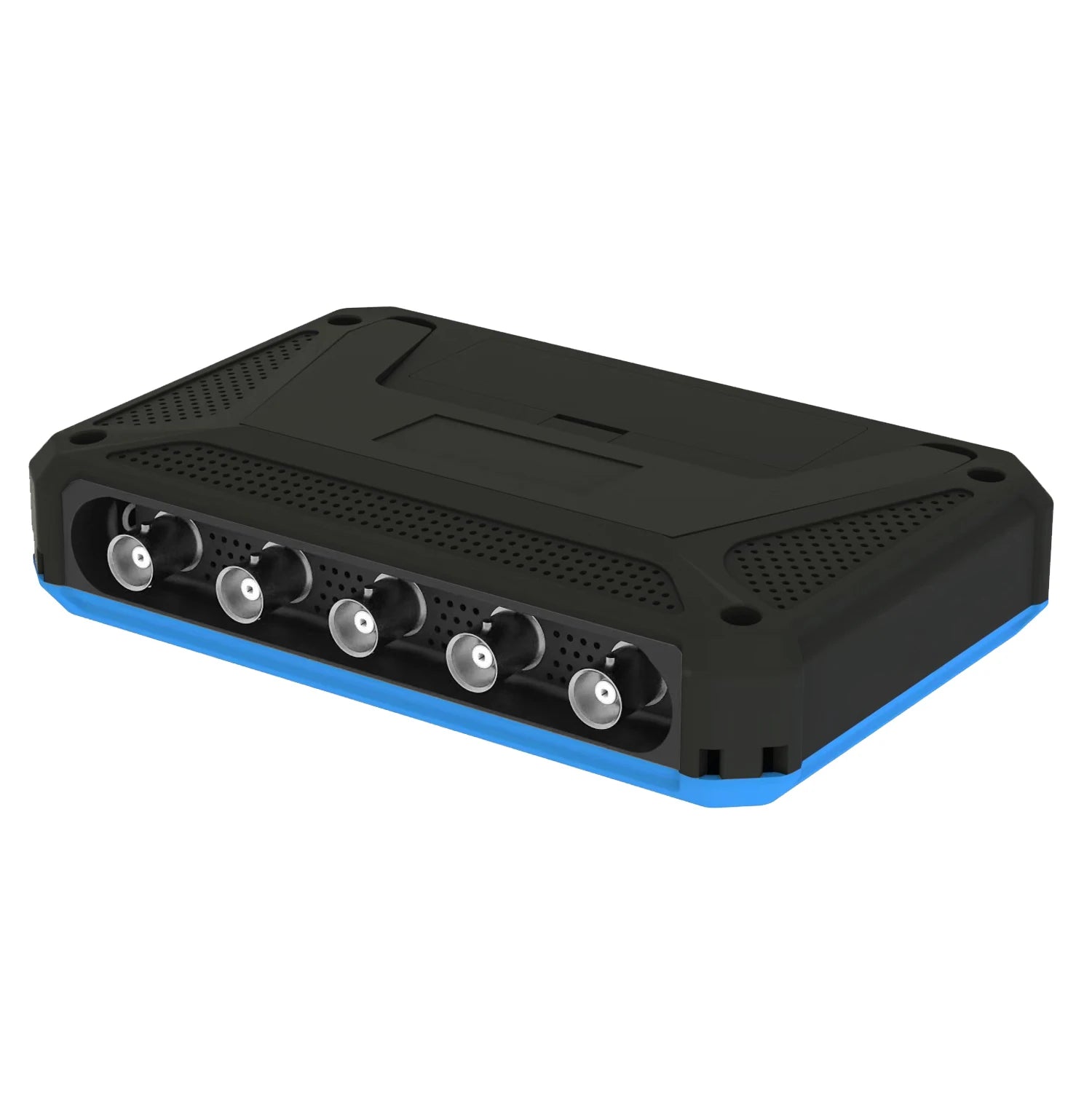

5-channel synchronous monitoring:

Supports simultaneous acquisition of 5-channel signals, reduces equipment switching time, and helps to quickly troubleshoot faults.

Flexible connection

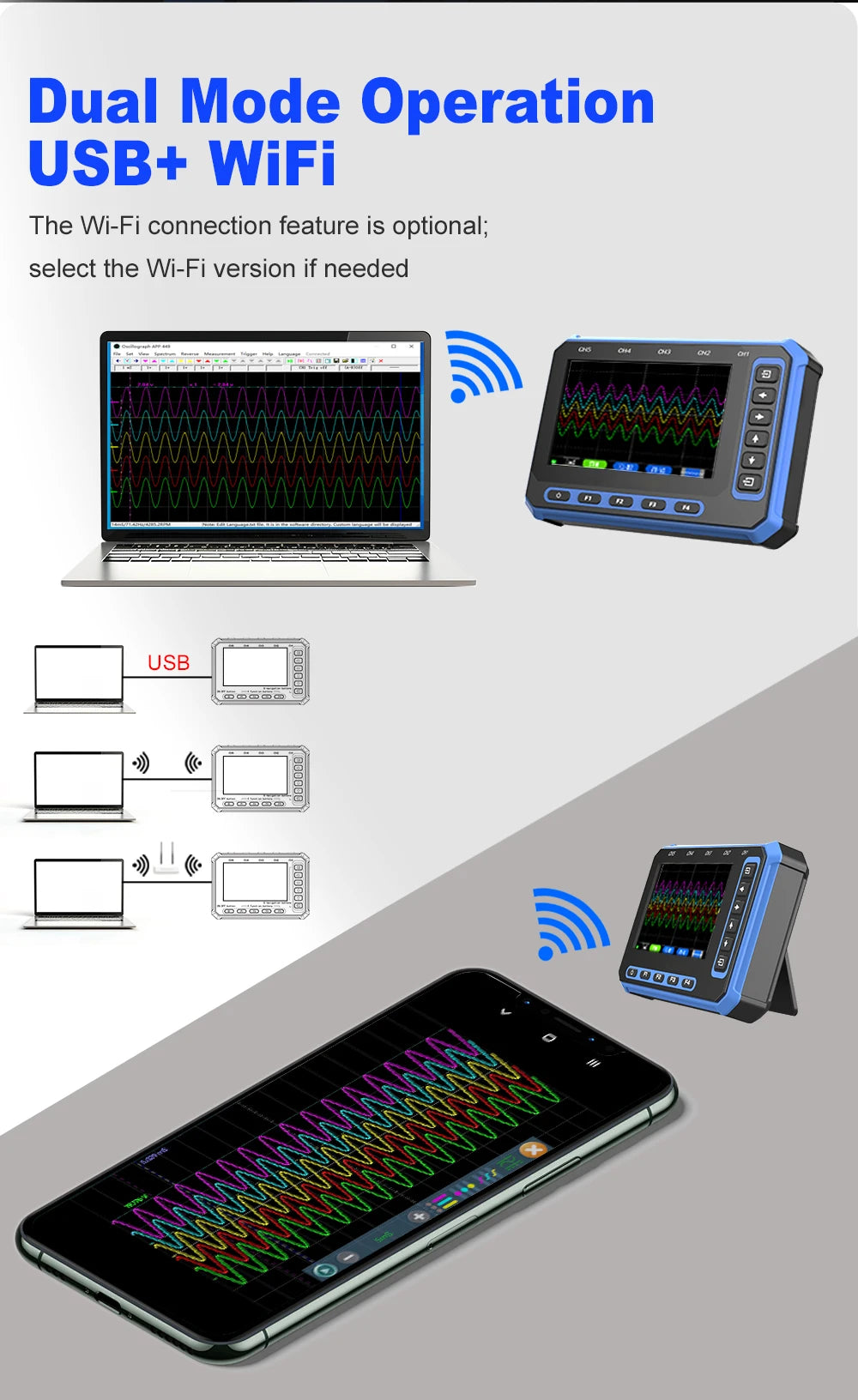

• Wireless WiFi (optional): remote control of mobile phones or computers. Dual-band WIFI, supports Android/Windows systems

• Wired USB: plug and play, compatible with Windows systems.

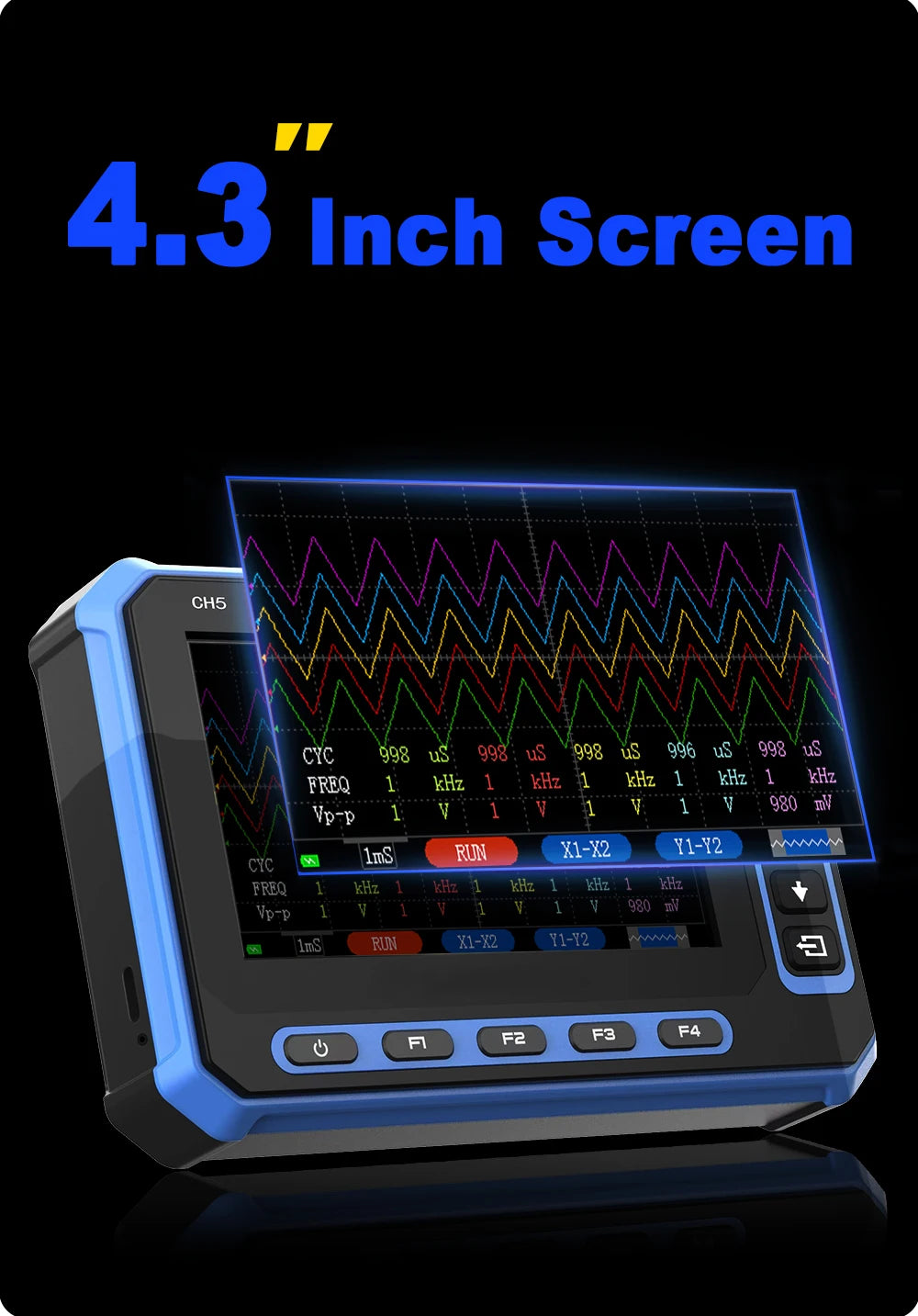

Large Color Screen

4.3-inch color screen, oscilloscope software interface effective viewing area accounts for >80%, "waveform" details are richer

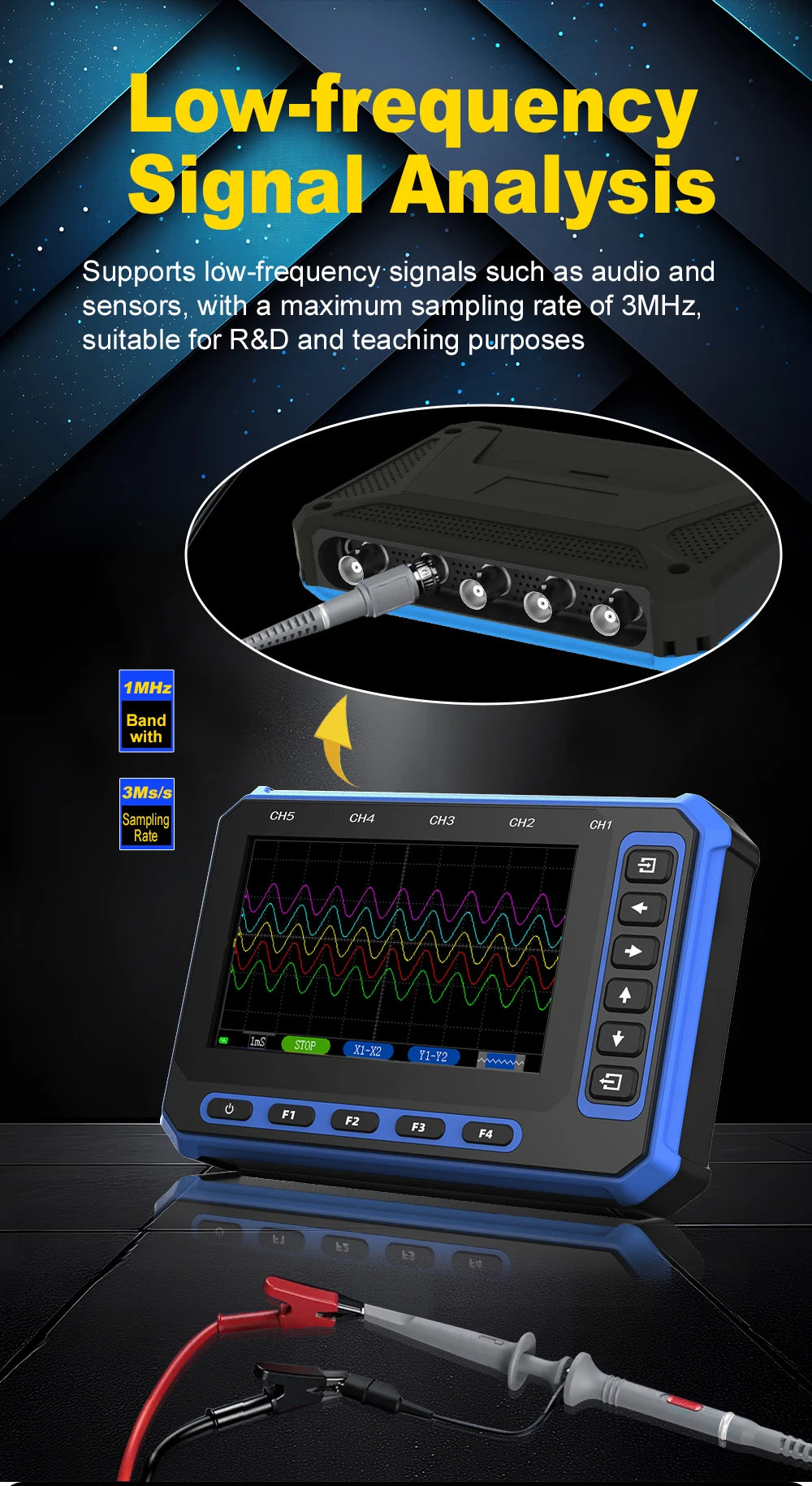

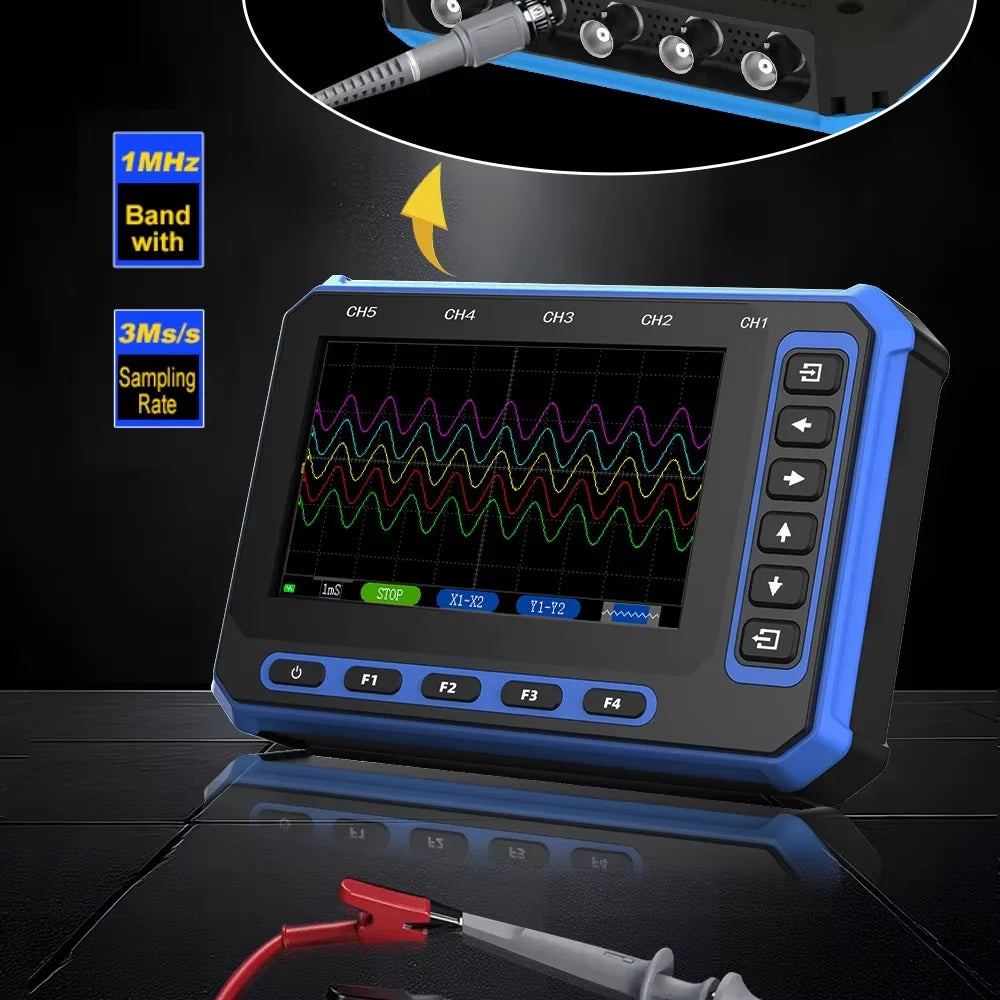

Low-frequency signal measurement

1MHz bandwidth, specializing in low-frequency signals (such as audio, sensor signals, industrial control signals), supports up to 3MHz sampling rate, and meets basic research and development and teaching needs.

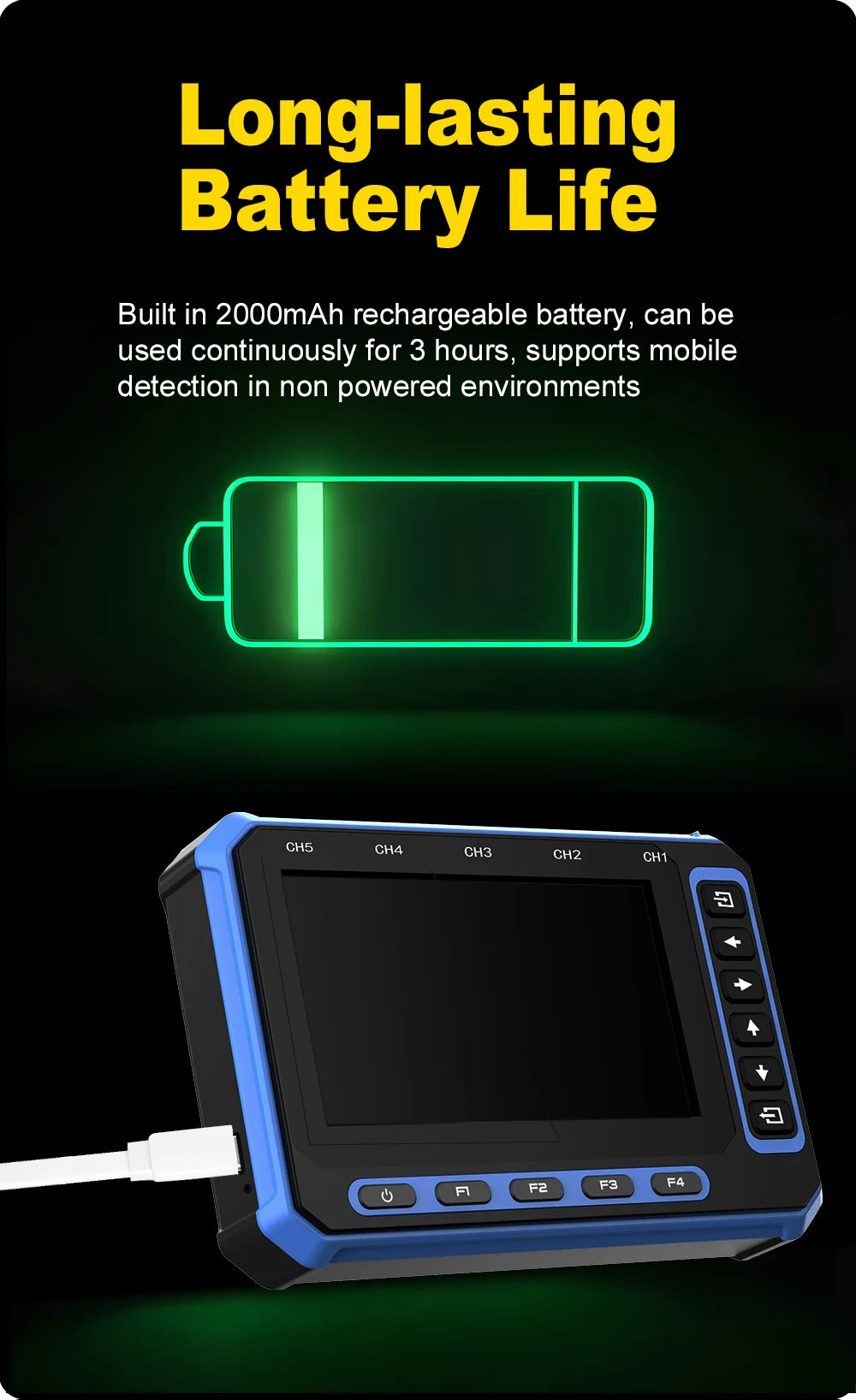

Portable and long battery life

Lightweight, only 350g, easy to carry. Built-in 2000mAh battery, can work continuously for 3 hours.

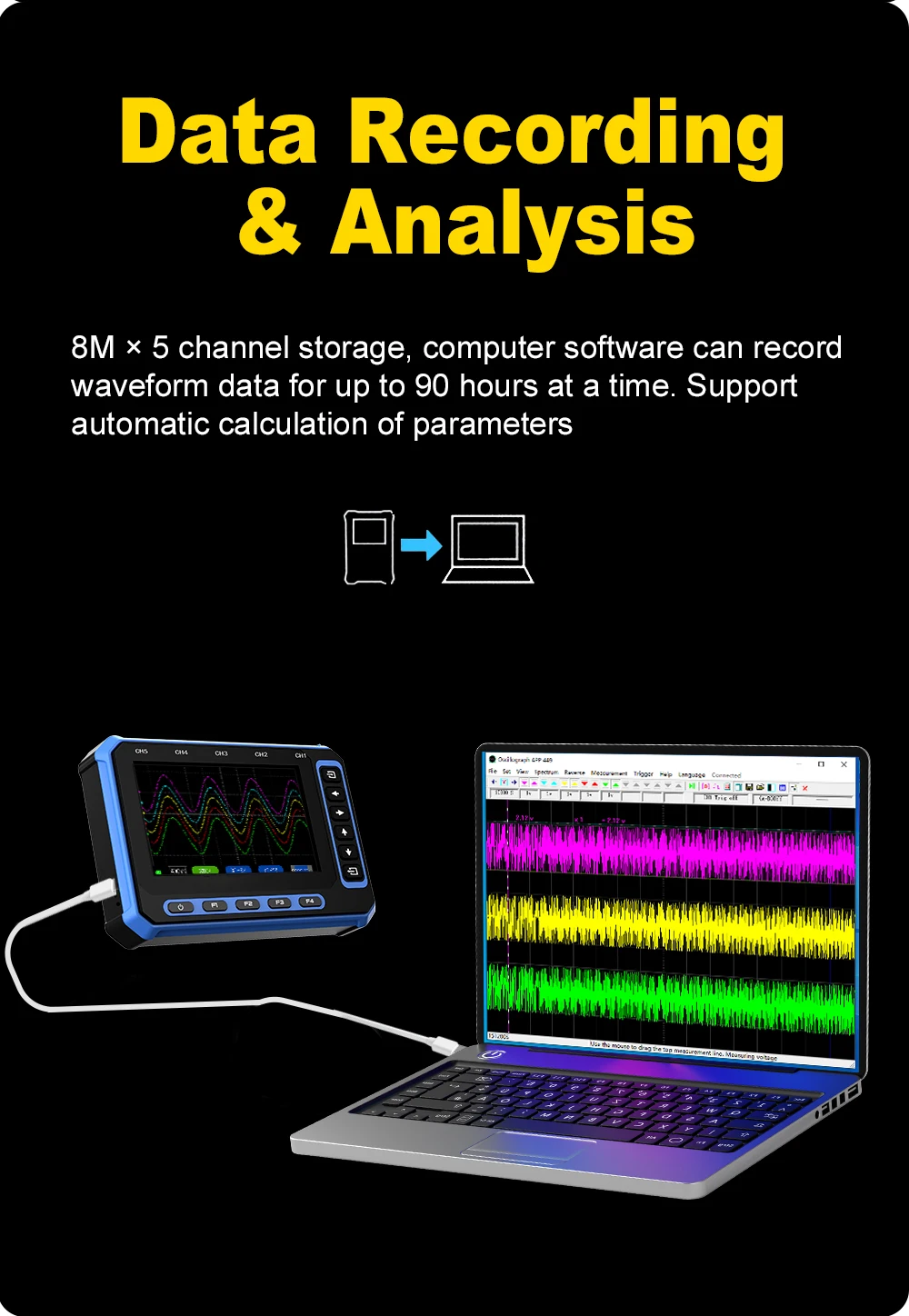

Data recording and analysis

8M×5 channel storage, computer software can record up to 90 hours of waveform data at a time. Support periodic signal analysis.

Applicable scenarios

Laboratory R&D and signal analysis, industrial automation and equipment maintenance, automotive electronic system testing, mobile device repair and on-site testing, etc.

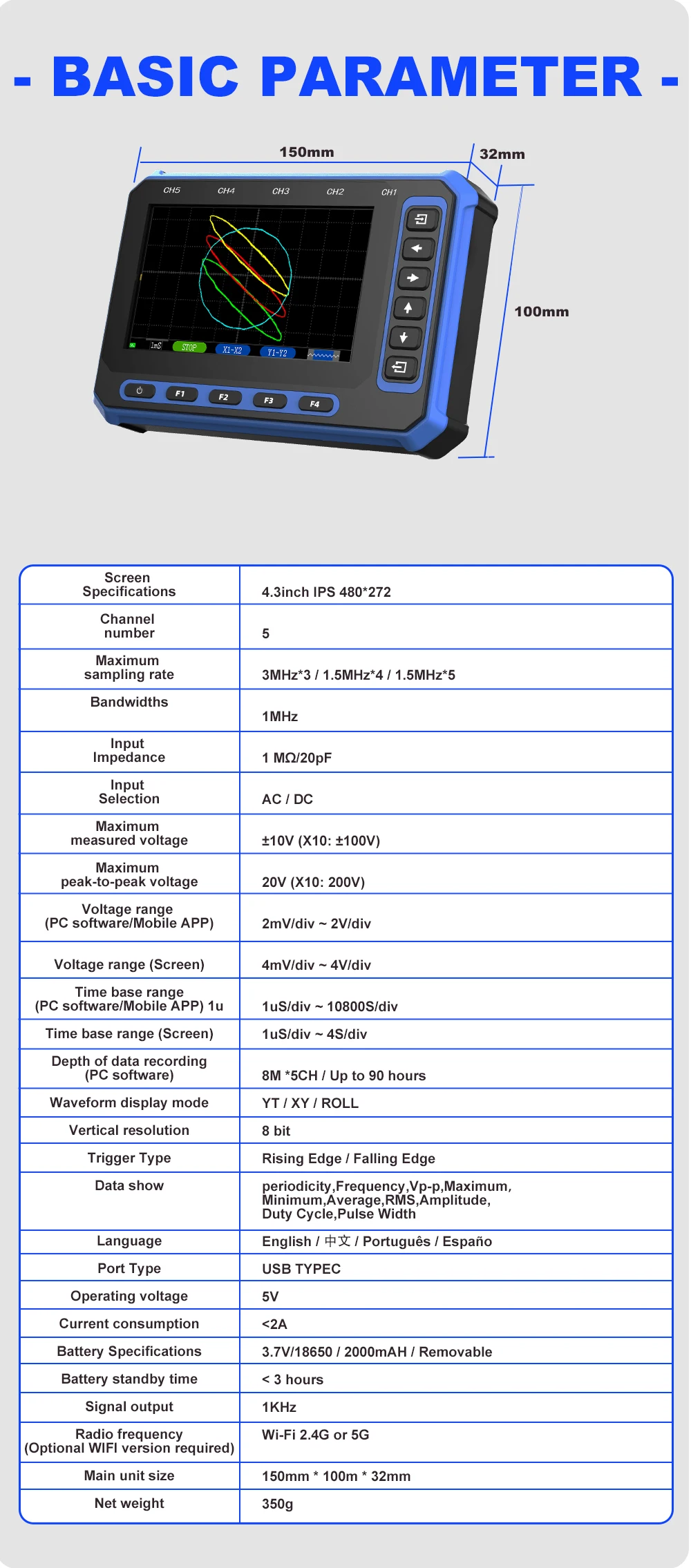

Specifications

Screen: 4.3inch IPS 480*272

Channel number: 5

Maximum sampling rate: 3MHz*3 / 1.5MHz*4 / 1.5MHz*5

Bandwidths: 1MHz

Input Impedance: 1MΩ/20pF

Input Selection: AC/DC

Maximum measured voltage: ±10V (X10:±100V)

Maximum peak-to-peak voltage: 20V(X10:200V)

Voltage range (PC software/Mobile APP): 2mV/div ~ 2V/div

Voltage range (Screen): 4mV/div ~ 4V/div

Time base range(PC software/Mobile APP): 1uS/div ~ 10800S/div

Time base range (Screen): 1uS/div ~ 4S/div

Depth of data recording(PC software): 8M *5CH/ Up to 90 hours

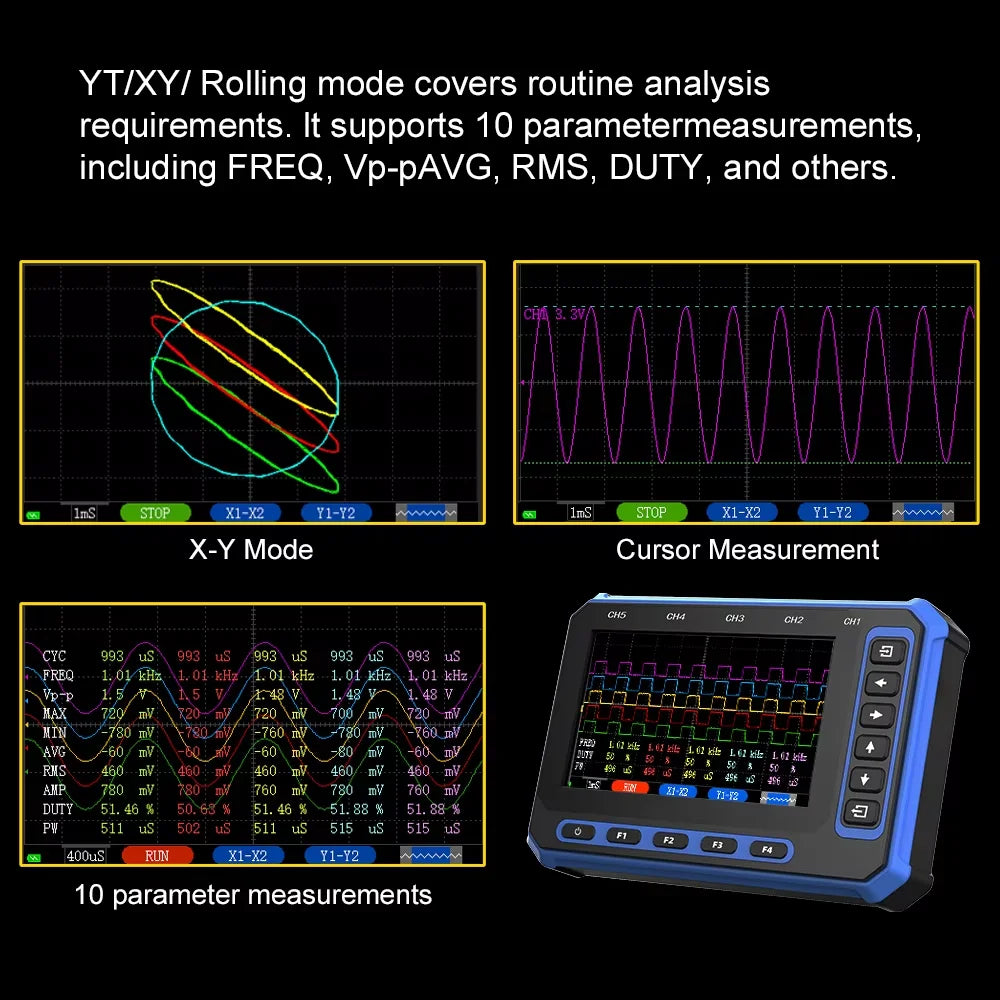

Waveform display mode: YT/XY/ROLL

Vertical resolution: 8 bit

Trigger Type: Rising Edge / Falling Edge

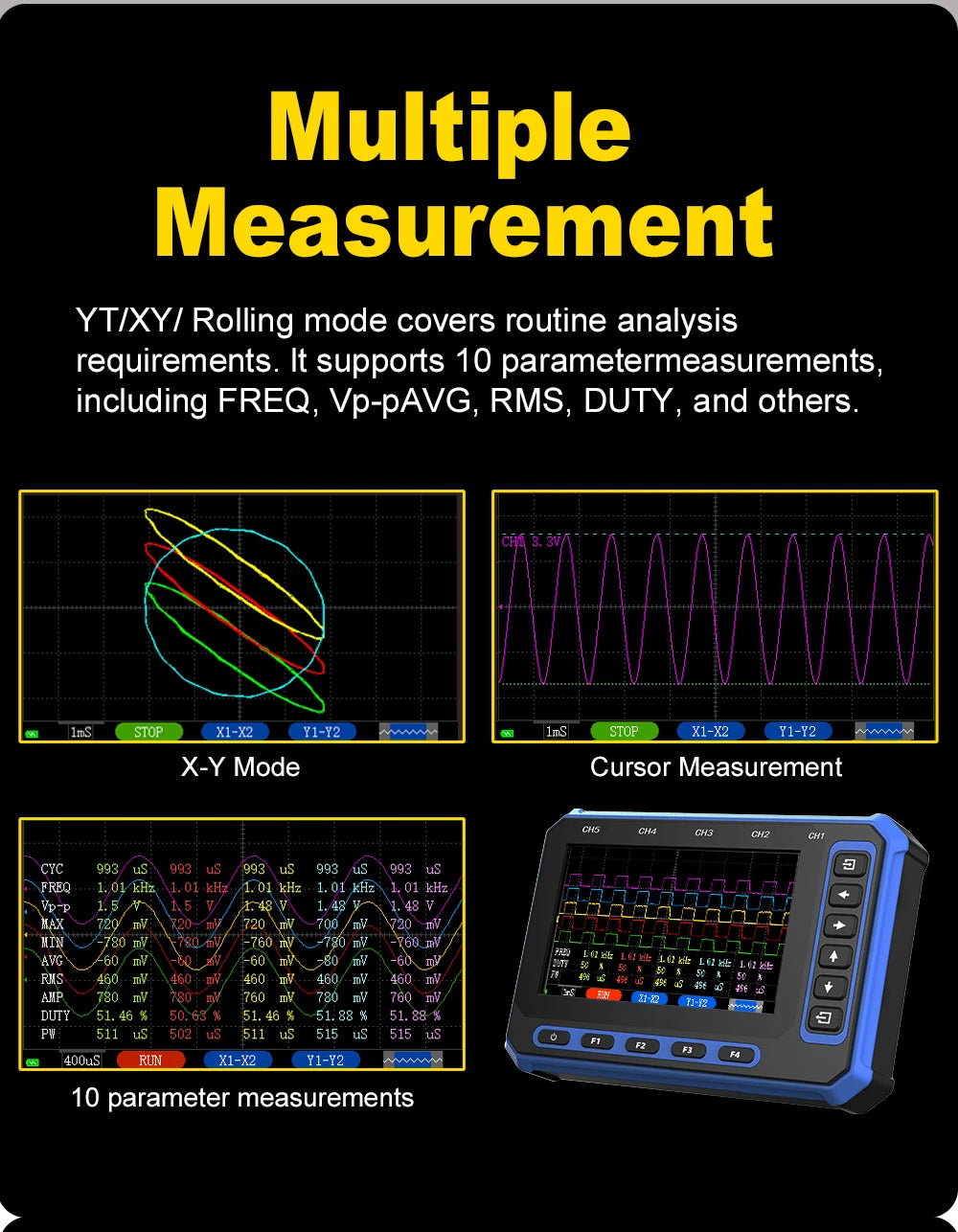

Data show: periodicity,Frequency,Vp-p,Maximum,Minimum,Average,RMS,Amplitude Duty Cycle,Pulse width

Language:English/中文/Portugués /Españo

Port Type: USB TYPEC

Operating voltage: 5V

Current consumption: <2A

Battery Specifications: 3.7V/18650/2000mAH /Removable

Battery standby time:< 3 hours

Signal output: 1KHz

Radio frequency(Optional WIFI version required): Wi-Fi 2.4G or 5G

Main unit size: 150mm* 100m*32mm

Net weight: 350g

Package List:

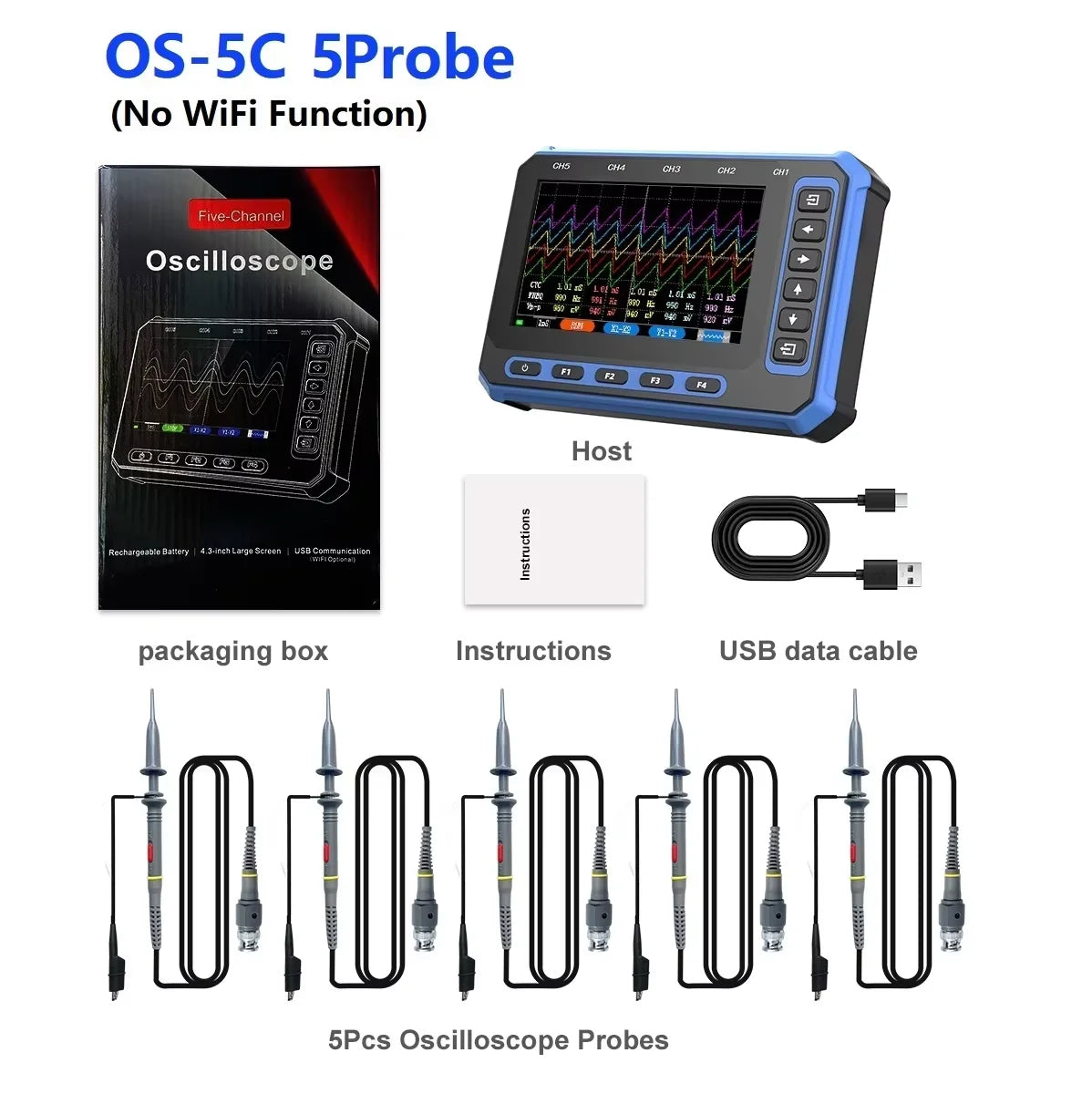

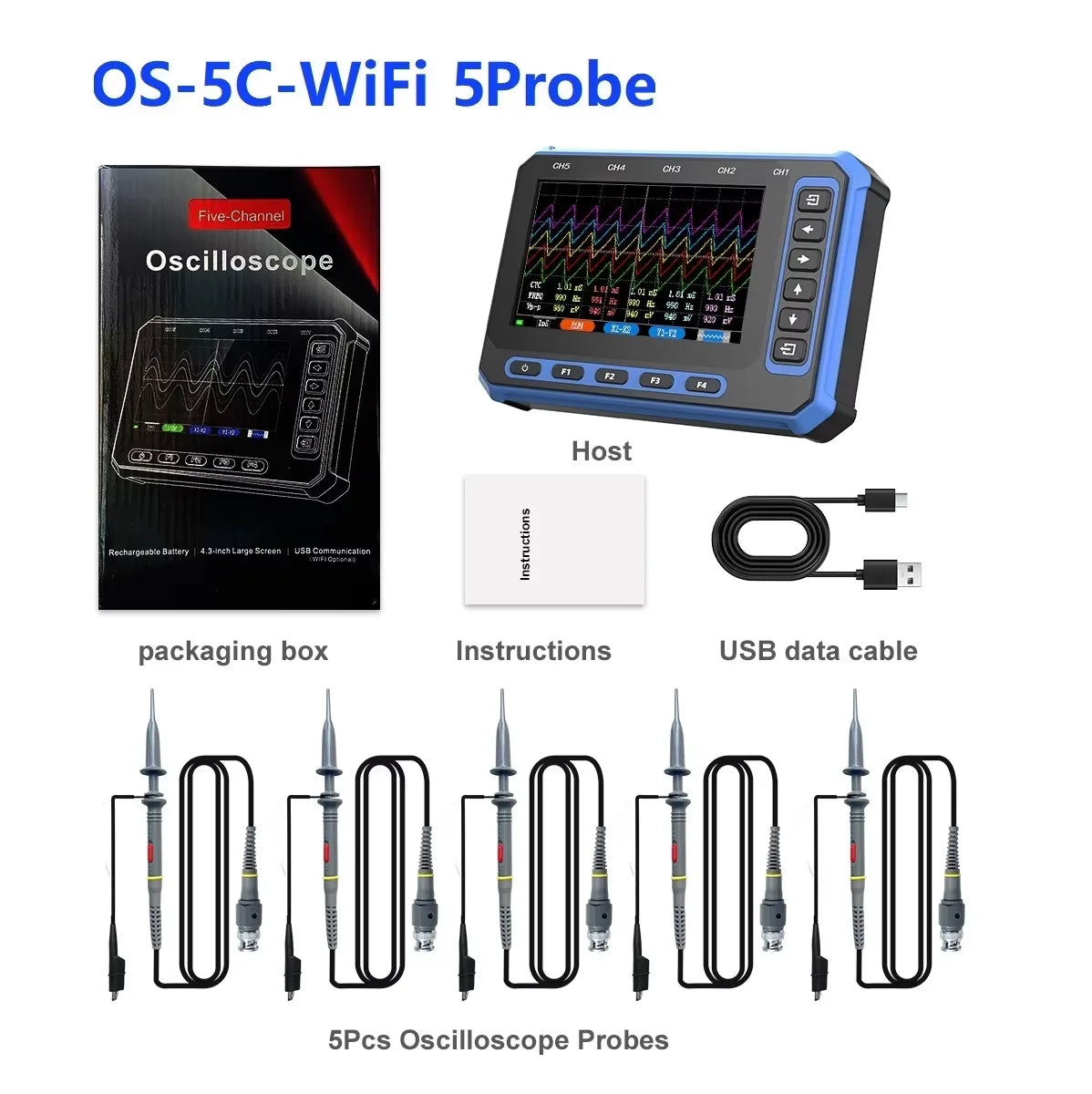

OS-5C 5Probe （no WiFi Function）

1 x Oscilloscope

1 x USB Cable

1 x English User Manual

5 x Oscilloscope Probes

OS-5C-WiFi 5Probe

1 x Oscilloscope

1 x USB Cable

1 x English User Manual

5 x Oscilloscope Probes

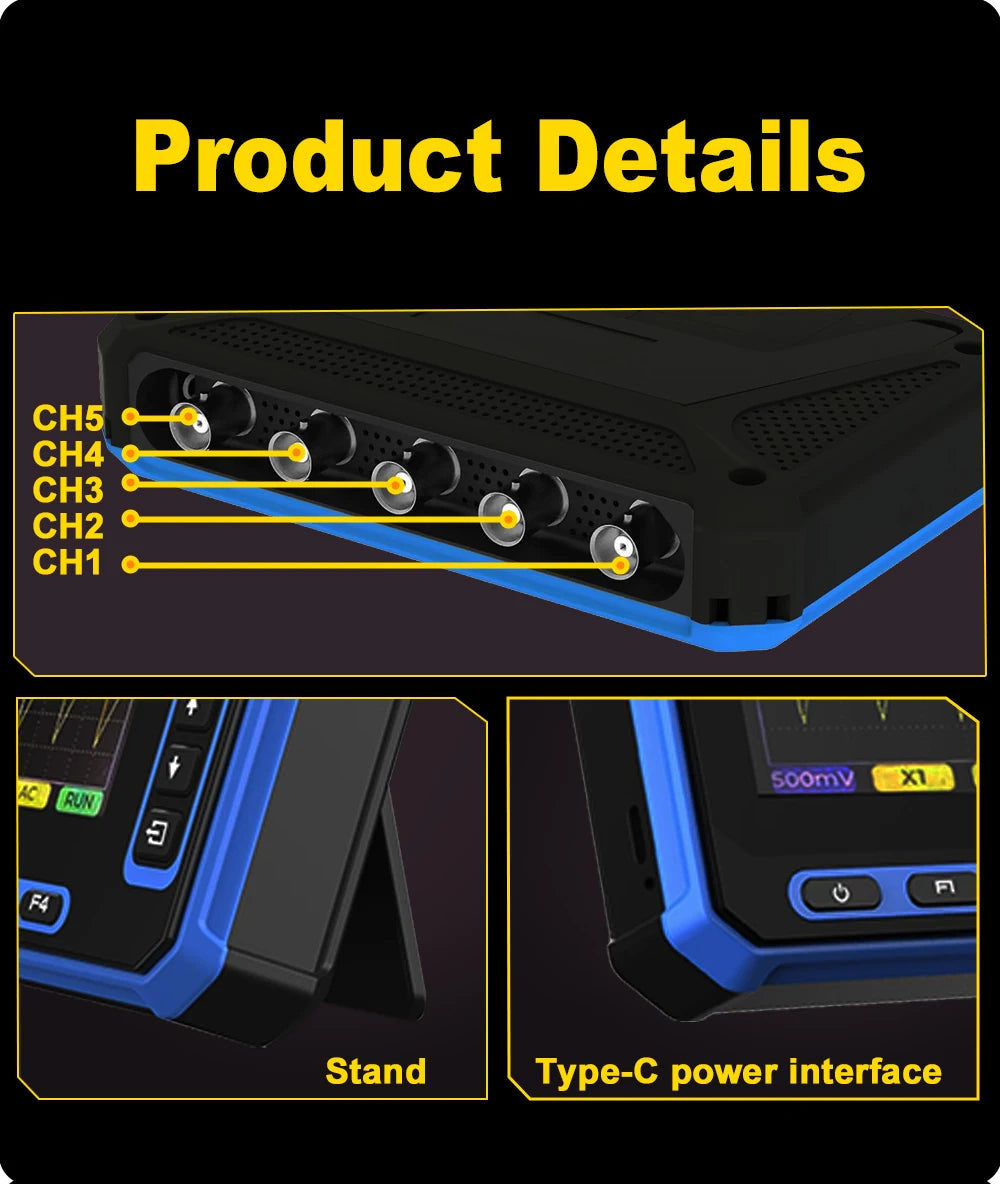

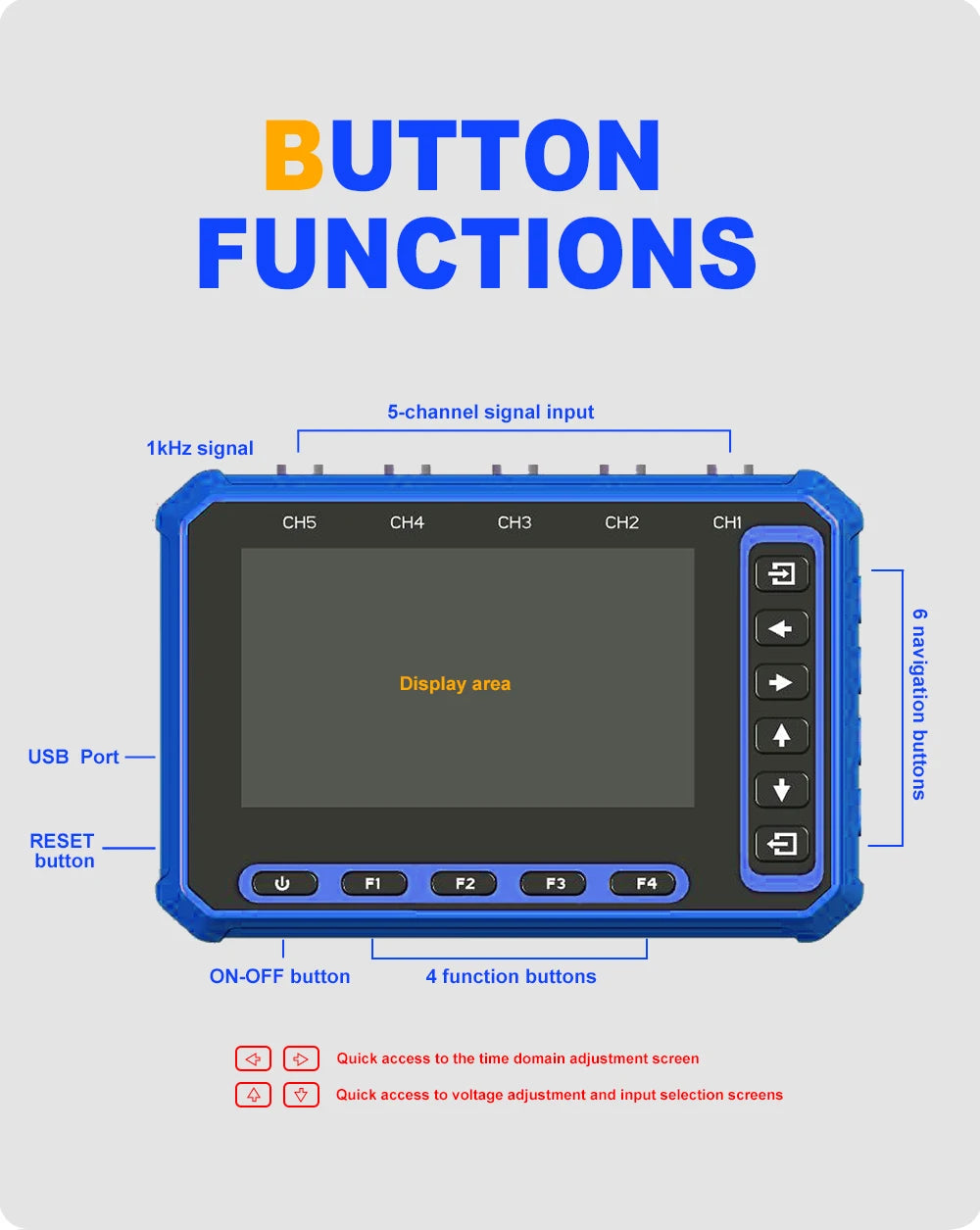

Details Pictures:
