SPECIFICATIONS

Name: Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT
Brand: Jarreim's Emporium
SKU: 14:10#Global Version K7;200007763:201336105
Price: 746.99 USD
Availability: InStock

18 Languages supported: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Korean, Hungarian, Persian, Dutch, Greek, Slovak, Swedish, Turkish, Traditional Chinese

Brand Name: KINGBOLEN

CPU: 4 cores 1.8GHz

Certification: FCC,CE

Communication Interface: OBD-II,Bluetooth

Diagnostic level: Advanced all system diagnostic

Display Resolution: 1280*720

Display Size: 7 inches

Electronic: Yes

External Testing Certification: ce

Hardware Version: Newest

High-concerned chemical: None

Is Batteries Included: Yes

Item Type: Engine Analyzer

Item Weight: 1.5

KINGBOLEN K7 Function 1: 28 Resets Lifetime Free

KINGBOLEN K7 Function 2: ECU Coding, Active Test Lifetime Free

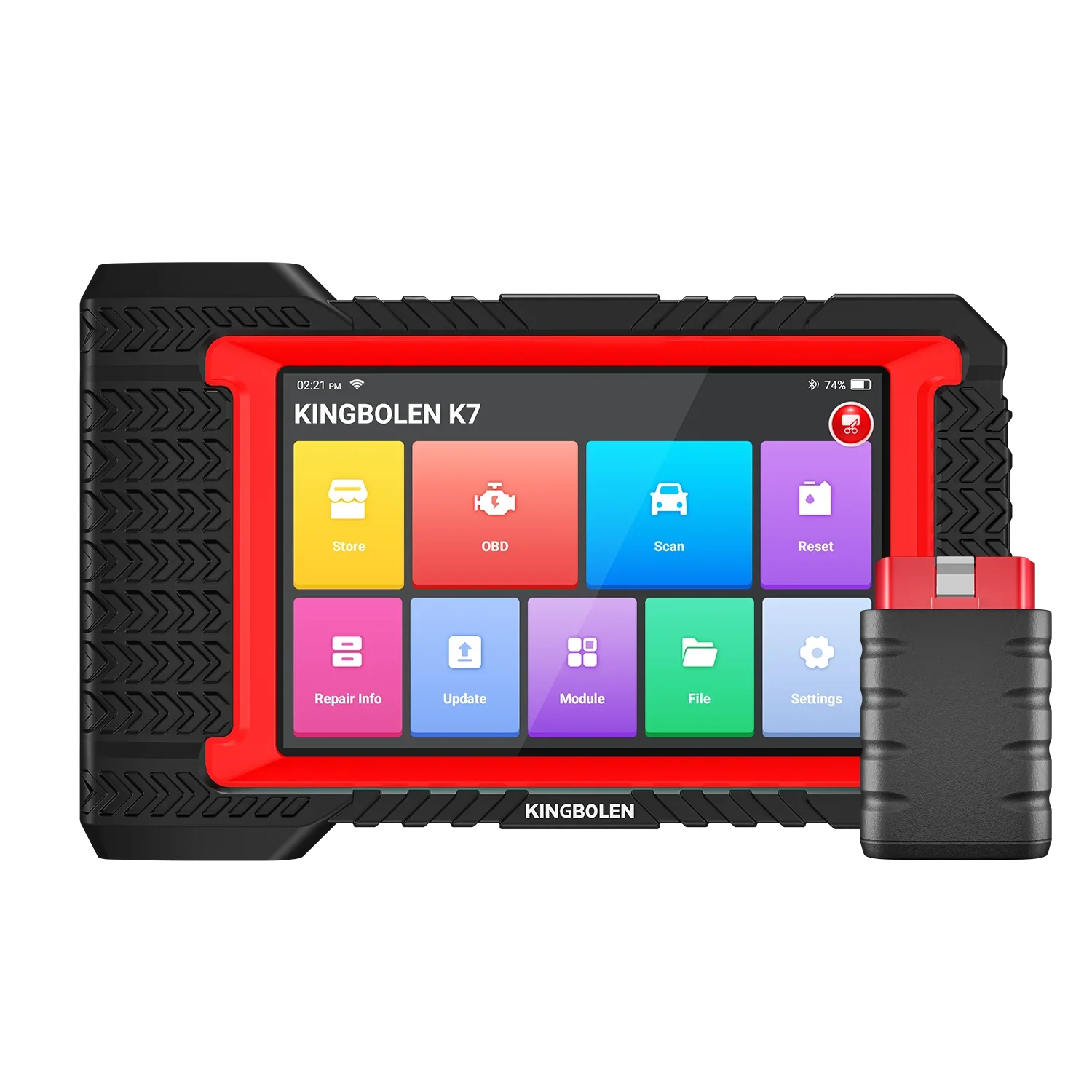

Model Name: KINGBOLEN K7

Origin: Mainland China

RAM: 2GB

ROM: 32GB

Software: Lifetime Free Update

Software Update: Yes

Software Version: Newest

Special Features: Bluetooth

Use: Not Telecommunication

Warranty: 1 Year Warranty

Wifi: 2.4GHz, 5.0Ghz dual frequency

battery capacity: 3150mAh

system version: Android 10

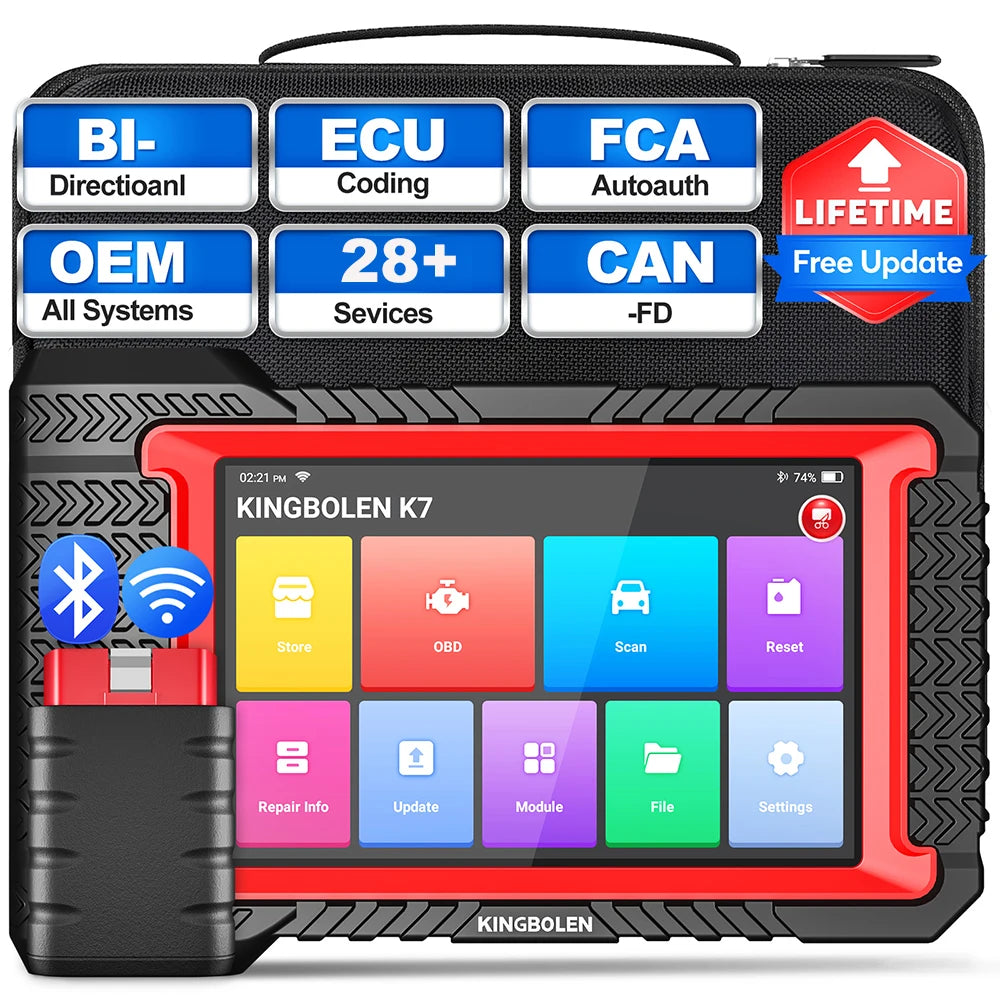

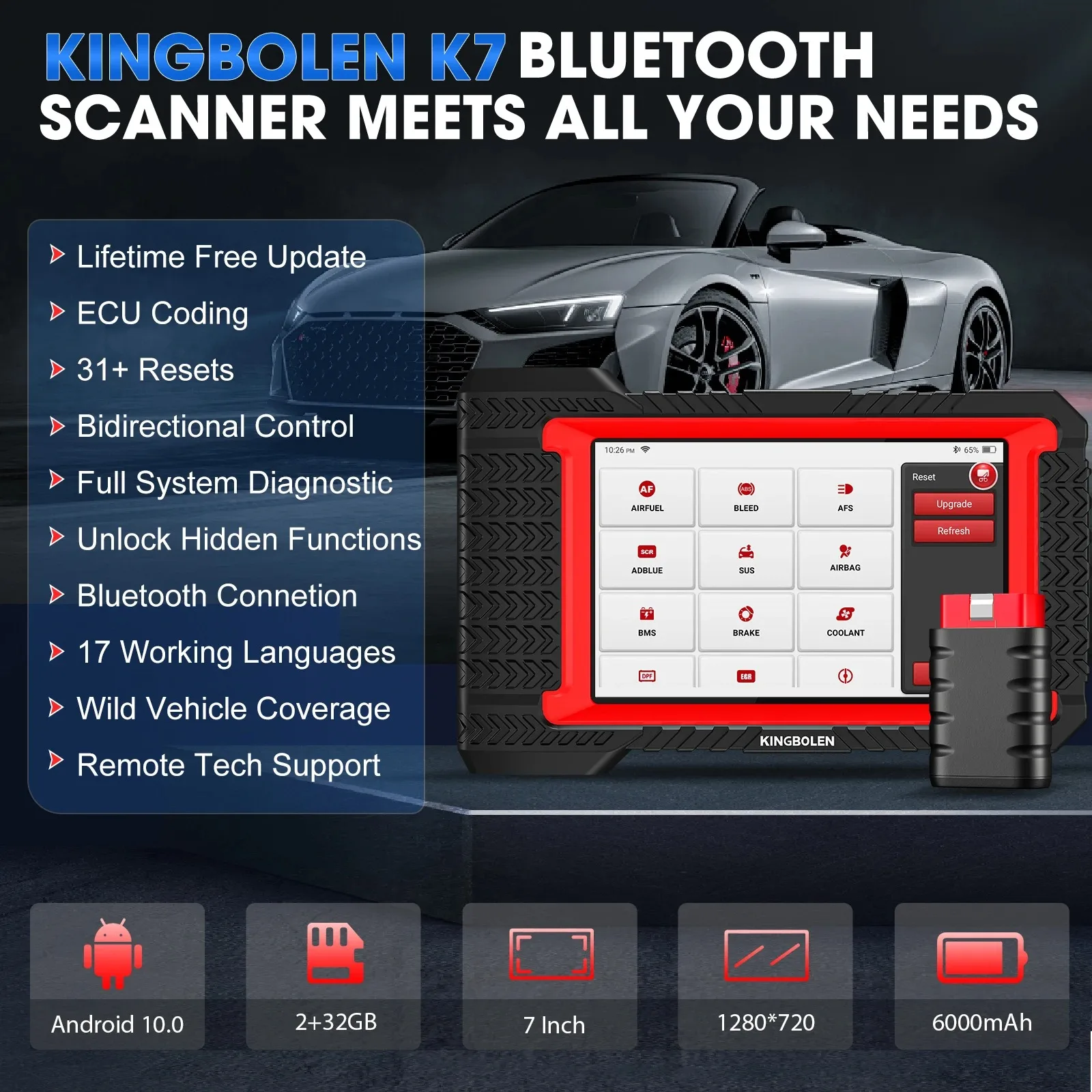

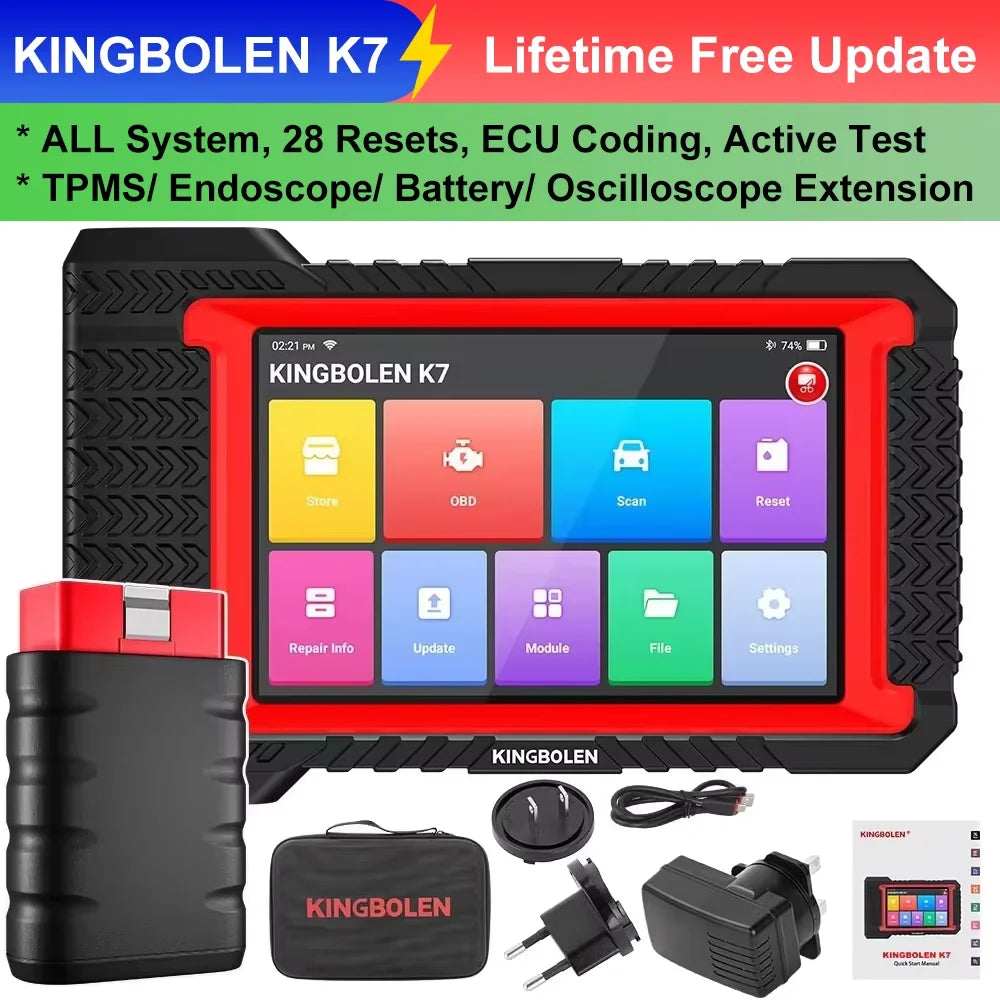

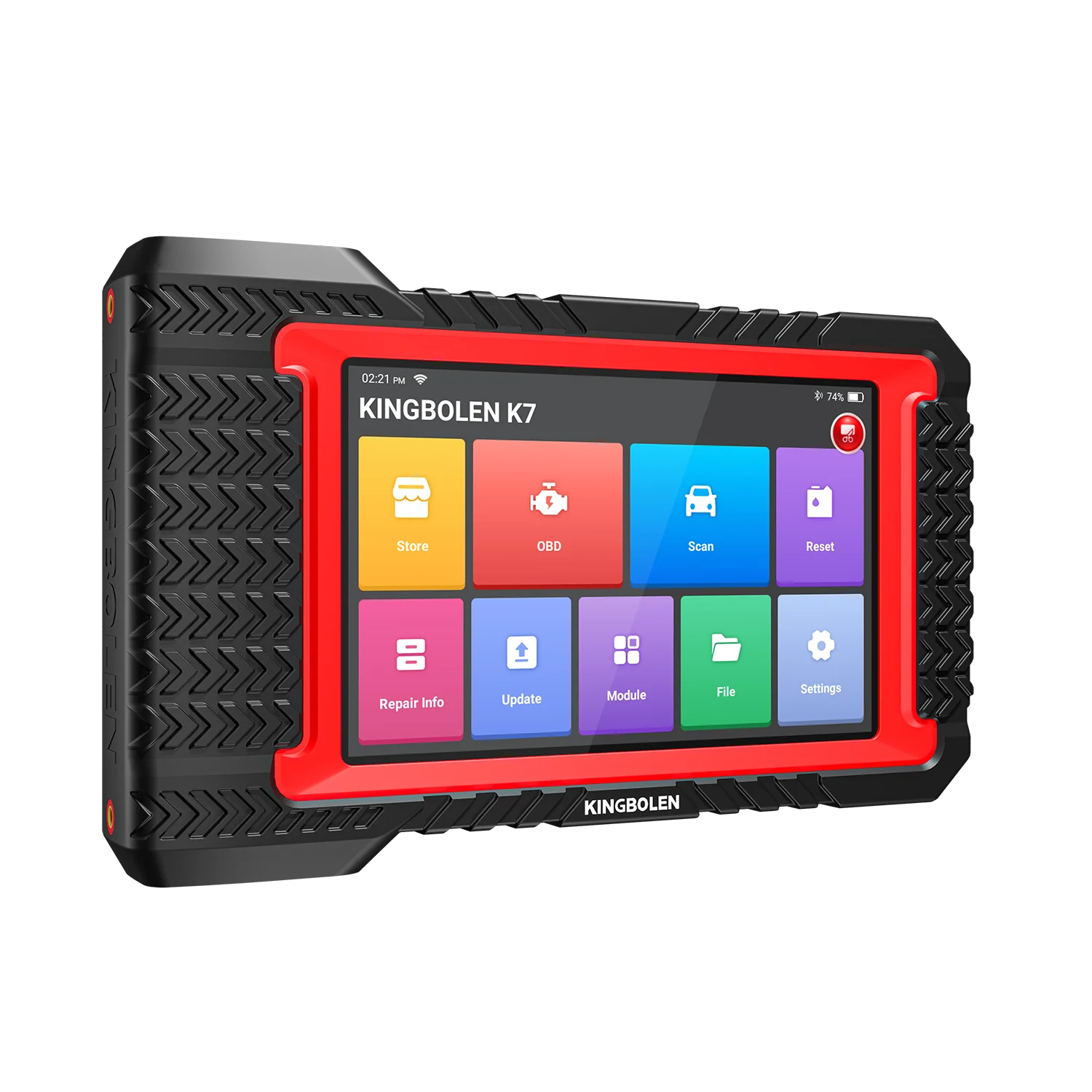

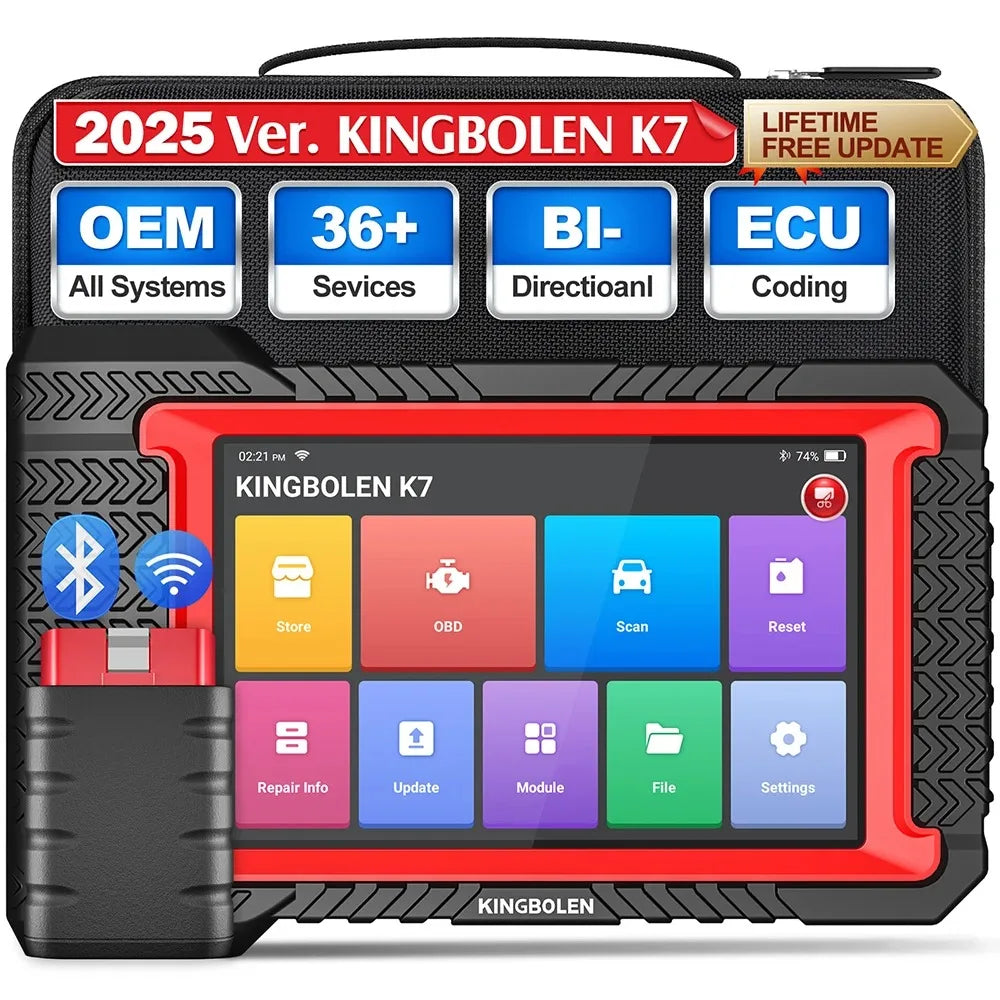

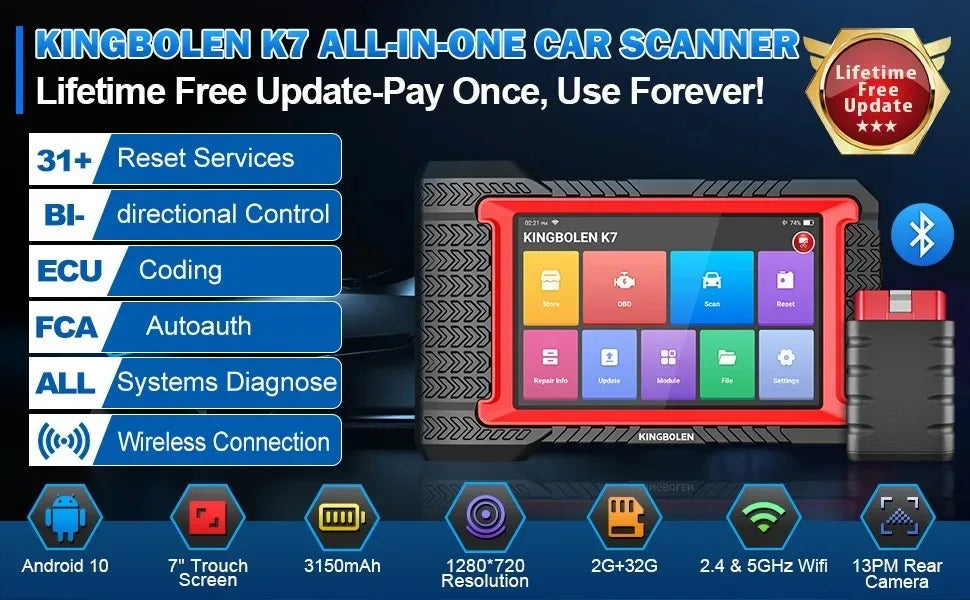

Lifetime Free Update【New upgraded CAN FD KINGBOLEN K7】7 inches Advanced All System car diagnostic tools, with ECU Coding, Bi-directional Test, 28 Resets, CAN FD protocol, Auto Vin Scan, Support TPMS and other extended functions, FCA AutoAuth (FCA function pay extra)

KINGBOLEN K7 car scanner has been upgraded to Lifetime Free Update software, saving you money.

🔥🔥🔥 Top reasons to recommend KINGBOLEN K7

1. 【All System, 28 Resets, Active Test, CAN FD, ECU Coding Lifetime Free】Meet your needs for car diagnostics.

2. 【All Software Lifetime Free Update】KINGBOLEN K7 software has been fully upgraded and upgraded to lifetime free upgrades, so you don't need to worry about the software expiring.

3. 【Added CAN FD protocol】Support diagnosis of more new car models

3. 【High-end configuration】7-inch 1280*720 High-definition Tablet, larger screen and clearer display, 2GB+ 32GB, 6000 mah/3.8V, Rear 1300W, Android 10, MT6761 Quad-core Cortex-A53 clocked at 1.8GHz

4. 【18 Languages Supported】English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Hungarian, Persian, Greek, Slovak, Dutch, Swedish, Traditional Chinese, Turkish

5. 【28 commonly used Reset functions to meet your needs】Reset SAS, Reset Brake, Reset GEAR, Reset OIL, Reset IMMO, Reset INJEC, Reset TPMS, Reset BMS/ BAT MATCH, Reset BLEED, Reset ETS/ELEC.TH ROTTLE RLRN, Reset DPF, SUS Reset , AFS Reset, SUN ROOF, GEARBOX LEARN, EGR Adaption, Language Change, A/F Resets, Coolant Bleed, NOx Sensor, Seats Calibration, Stop Start, Transport Mode, Tyre Reset, Windows Calibration, AdBlue Rest, ODO Resets, airbag Reset

6. 【AutoAuth for FCA SGW】 (Need to buy FCA Account by yourself)

7. 【Support more extended functions】THINKCAR USB Printer Extensions, THINKCAR Endoscope, THINKCAR VENU-i Pro, THINKCAR Battery Tester, THINKCAR Oscilloscope

🏆🏆🏆Add CAN FD new protocols

KINGBOLEN K7 Scanner support CANFD Protocol, for GM (2019-)；

Support CANFD vehicles

for GM:
[2021] [for Chevrolet] [for Onix] CANFD 6&14
[2021][for Chevrolet] [for Tracker] CANFD 6&14
[2021] [for Chevrolet] [for Suburban] CCMA
[2021] [for Cadillac] [for Escalade ESV] CCMA
[2021] [for Cadillac] [for Escalade] CCMA
[2021] [for GMC] [for YUKON XL] CCMA
[2021] [for GMC] [for YUKON] CCMA
[2023] [for Chevrolet] [for Montana] CANFD 6&14
[2024] [for Buick] [for Electra E5] VSIM
[2024] [for GMC] [for Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)
[2021] [for Chevrolet] [for Onix] all system
[2021] [for Chevrolet] [for Tracker] all system
[2021] [for Chevrolet][for Suburban] CCMA
[2021] [for Cadillac][for Escalade ESV] CCMA
[2021] [for Cadillac][for Escalade] CCMA
[2021] [for GMC][for YUKON XL] CCMA
[2021] [for GMC][for YUKON] CCMA
[2023] [for Chevrolet][for Montana] all syste
[2024] [for Buick] [for Electra E5] VSIM
[2024] [for GMC] [for Sierra] H/U TCM 10 Speed (MGM)/ 10 Speed (MGU)

AutoAuth for FCA SGW (Need to buy FCA Account by yourself)

Use the latest software update function AutoAuth to provide diagnosis, active testing, etc., making the diagnostics more secure. Applicable to FCA vehicles (for Chrysler, for Dodge, for Fiat, etc. after 2017) equipped with a security gateway module (SGW).

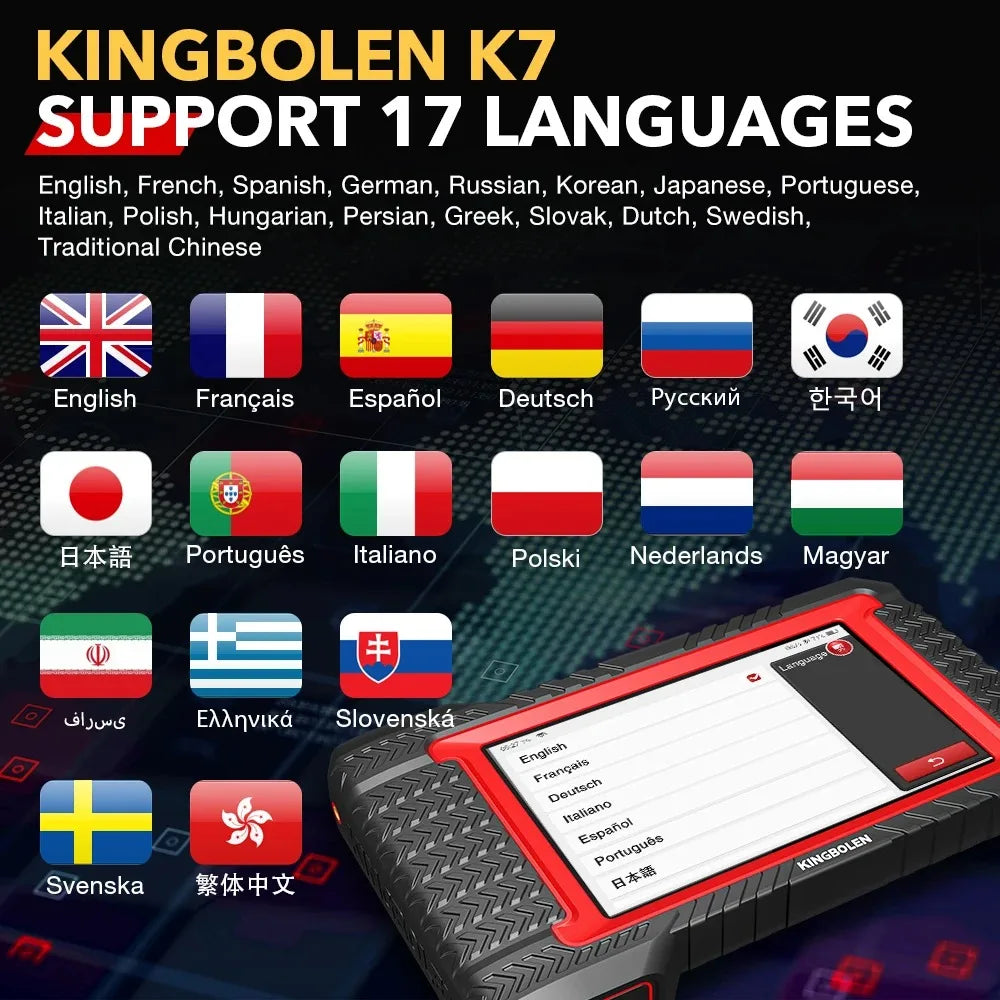

18 Languages can be switched at will

English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Korean, Hungarian, Persian, Dutch, Greek, Slovak, Swedish, Turkish, Traditional Chinese

OE-level ALL System Automotive Diagnostic Tool Lifetime Free Update

As an OE-level automotive diagnostic tool, KINGBOLEN K7 can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

Include: ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc...

Brief introduction of its capabilities in full systems diagnostic as follows:

1. 【For Engine System】Diagnostic tool KINGBOLEN K7 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. 【For Transmission】 It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. 【For ABS System】Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. 【For SRS System】SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.

5. 【To diagnose Brake System】 if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

6. 【To diagnose Emission System】 if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

7. 【To diagnose Fuel system】 if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

8. 【To diagnose Transmission】 if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

9. 【To diagnose Wiper System】 if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

10: 【To diagnose Light System】 if you see rapid signal blinking or dimming lights. And many more ....

🔥🔥🔥 Advanced ECU Coding Lifetime Free Update

used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements. You can use KINGBOLEN K7 to stimulate all the possibilities of the vehicles

After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.

Recode Changed Modules/ Optimize Vehicle Performance/ Re-Flash/ Hidden Functions/ Renew ECUs Coordination/ Reprogram/ Adaptive Data/ Improve Fuel Efficiency/ Reduce Power Loss/ Improve the Durability of Mechanical Parts

🔥🔥🔥 Active Test (BI-Directional Control) Lifetime Free Update

KINGBOLEN K7 car scanner diagnostic tool Features Full bi-directional control ability, to send commands to vehicle’s systems/ components, to verify system input/output without using the vehicle's controls.

e.g. turn on the radiator fan, modulate the throttle, open/ close windows, operate mirrors, Injector Buz Test,turn on interior & exterior lights, sound horn, test door lock actuators and such.

28 Hot Services Reset Lifetime Free Update, which allows you to reset various systems in your vehicle, keep updating

Please note that not all models and years support all reset functions described, it depends on the model and year;

This means that some car has no reset function, and some has only a few, depending on your model and year

1. Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance.

Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Elec.Throttle Adaptation

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.

3. SAS Resets- Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.

After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

4. Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

5. ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity.

lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6. Brake Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.

After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

7. DPF Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8. Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started.
The diagnostic device detects the DTC P1336'gear not learned'

In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.

9. IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

When the ignition switch key, ignition switch, combined instrument panel, ECu, BCM, or remote control battery is replaced, anti-theft key matching must be performed.

11. TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.

12. Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

13. AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

14. A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem.

In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.

15. Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.

16. EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

17. ODO Reset

a) ODo reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.

b) Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.

Please note that mileage modification is not supported

18. Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collidesand the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared.

Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of theairbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and theairbag computer can continue to use.

19. Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.

At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20. A/F Reset

This function is applied to set or learn Air/ Fuel ratio parameters.

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).

21. Stop/ Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).

22. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECu.

23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.

24. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

25. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26. Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

27. Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover theautomatic ascending and descending function of power window.

28. Language Change
This function is used to change the system language of the vehicle central control panel.

......Continuously updating

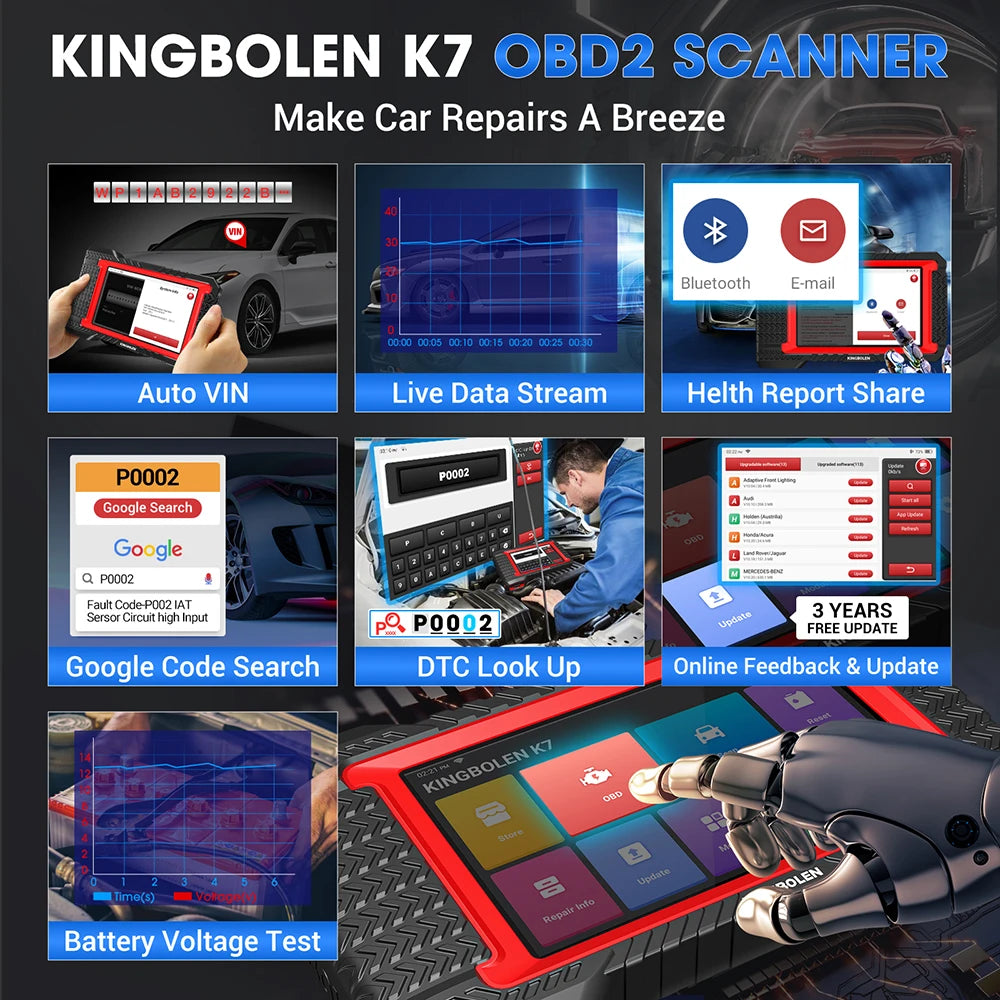

Full OBD2/ EOBD2 Function

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4) I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

Support extended functions

Support THINKCAR Printer Extension (buy Printer extra)

Support THINKCAR Endoscope Extension (buy Endoscope extra)

Support THINKCAR THINKTPMS G2, THINKCAR VENU-i Pro (buy extra)

Support THINKCAR Oscilloscope Extension (buy THINKCAR Oscilloscope extra)

Support THINKCAR Battery detection extension (buy THINKCAR Battery tools extra)

Lifetime Free upgrade & lifetime technical service

* KINGBOLEN K7 with Lifetime free Update online with wifi.

* We have a professional technical team to provide you with professional technical services

Wide vehicle coverage and is compatible with 90% of all car models from the US, Europe, Asia and China.

For Aston Martin
For Audi
For Ford (Austrilia)
For Holden (Austrilia)
For BAIC/ For Senoua (BAIC)/ For Weiwang (BAIC)/ For BJEV
For MERCEDES-BENZ
For BMW/ For Rolls Royce/ For Mini
For Fiat (Brazil)
For GM (Brazil)
For Changan
For GWM
For Changhe
For Chrysler/ For Dodge/ For Jeep
For Citroen
For CMC
For Daewoo
For Daihatsu
For DFSK/ For Fengguang (Dongfeng)
For DR
For Ferrari
For Fiat/ For Abarth/ ForAlfa Romeo/ For Lancia
For BYD
For Foton
For GAZ
For GM/ For Chevrolet/ For Cadillac/ For Buick
For Hafei
For Haima
For Honda/ For Acura
For Brilliance
For Hyundai
For IKCO
For Mahindra (India)
For Maruti (India)
For Tata (India)
For JMC
For Iveco
For IZH
For JAC/ For JAC Refine
For Gonow
For Jinlong
For Isuzu/ For Isuzu (Thailand)
For KIA
For Land Rover/ For LifanJaguar
For Lifan
For SGMW/ United Pakistan
For Luxgen
For Mahindra
For Perodua (Malaysia)
For Proton (Malaysia)
For Maruti
For Maserati
For Maxus

For Mazda
For Mitsubishi
For MVM
For Nissan/ For Infiniti/ For GTR (Nissan)
For Opel/ For Vauxhall/ For Opel (South Africa)
For PAZ
For Perodua
For Peugeot
For Porsche
For Proton
For Chery
For Qoros
For Renault/ For Dacia/ For Samsung Renault
For Rover
For Saab
For MG (SAIC)
For Saipa
For Samsung
For Seat
For SeAZ
For SGM/ For Buick (China)
For Skoda
For Smart
For Spark
For Sprinter
For Ssangyong
For Subaru
For Suzuki
For Tata
For Toyota/ For Lexus
For Trumpchi
For UAZ
For Ford
For VAZ
For Volvo
For VOLKSWAGEN
For Weili
For FAW (Tianjin)
For Xinkai
For ZAZ
For Polarsun
For Zotye
For ZX Auto

Parameters of KINGBOLEN K7

* Tablet size: 7 inches, 1280*720
* System version: Android 10
* CPU version: MT6761 4-core Cortex-A53 main frequency 1.8GHz
* Running memory: 2GB
* Storage memory: 32GB (system shows 32GB)
* Battery capacity: 6000 mah/3.8V,
* Camera: rear 1300W
* Wifi network: 2.4GHz, 5.0Ghz dual-band
* Packing size: about 275mm x 106mm x 189mm
* Product gross weight: about 1.6 KG
* Charging power:: 5.0V -- 2.5A 12.5W

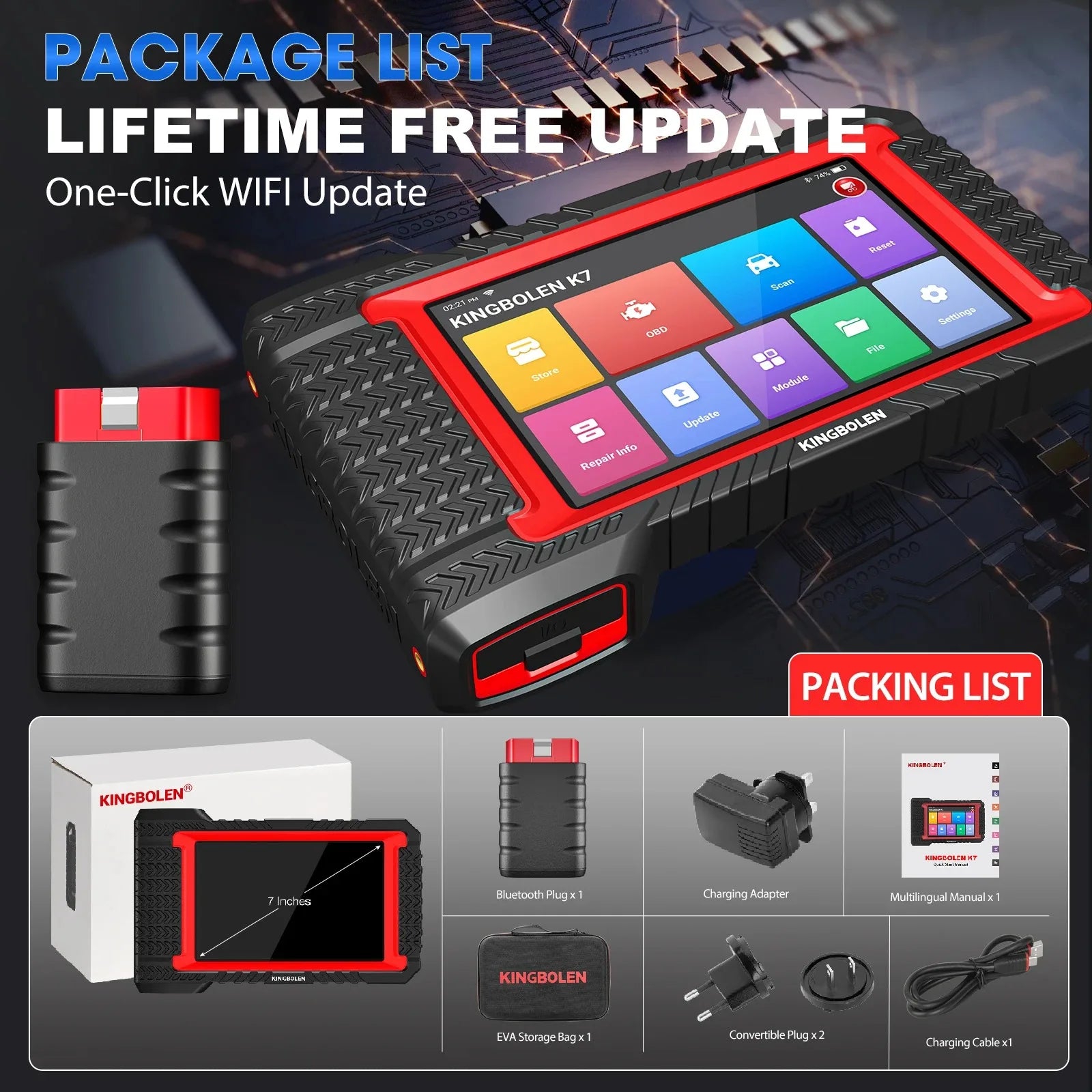

KINGBOLEN K7 PACKING LIST

1pc * 7 inch K7 Tablet
1pc * Dongle

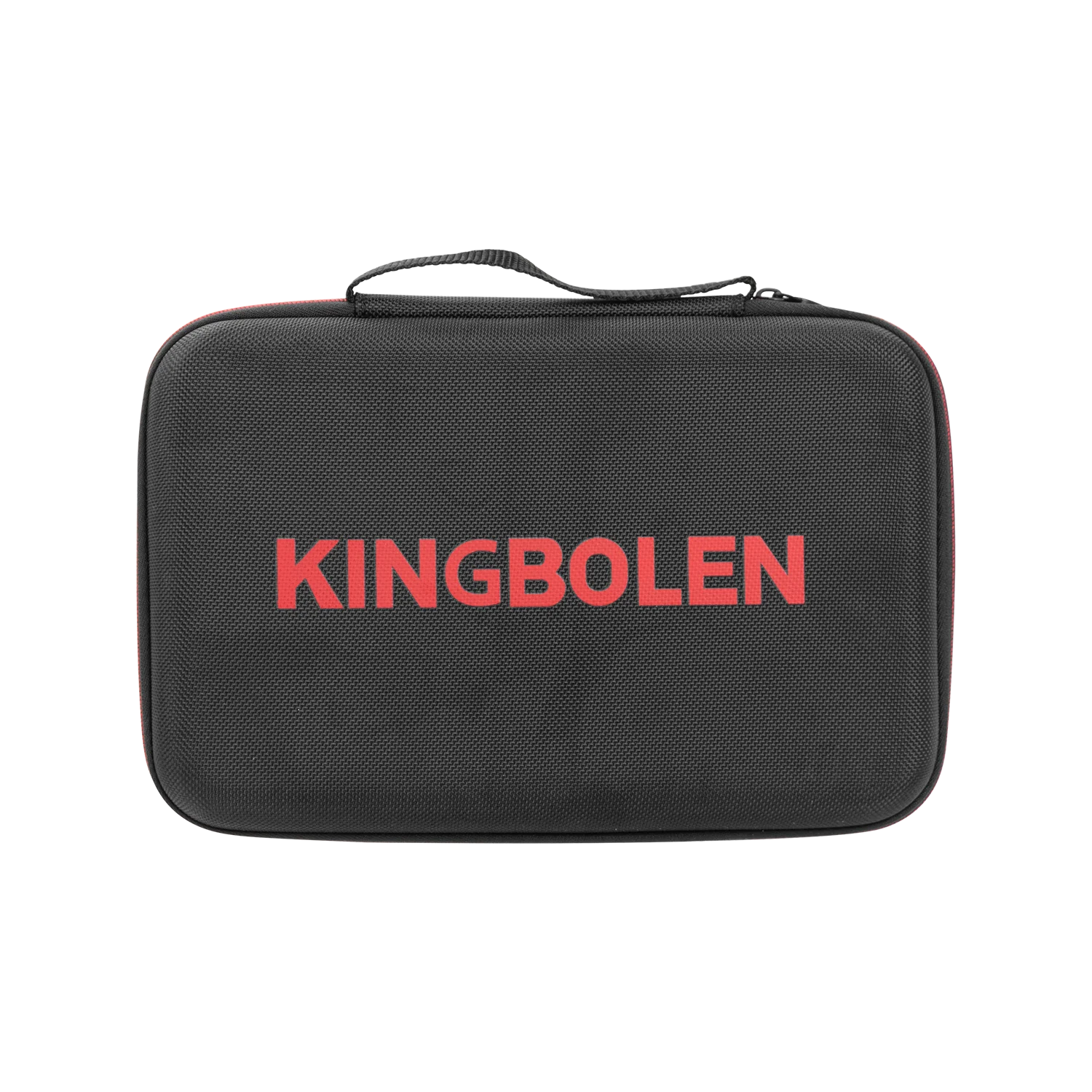

1pc * Handbag black
1pc * Multilingual manual (English, French, Spanish, German, Russian, Italian, Portuguese, Polish, Japanese)

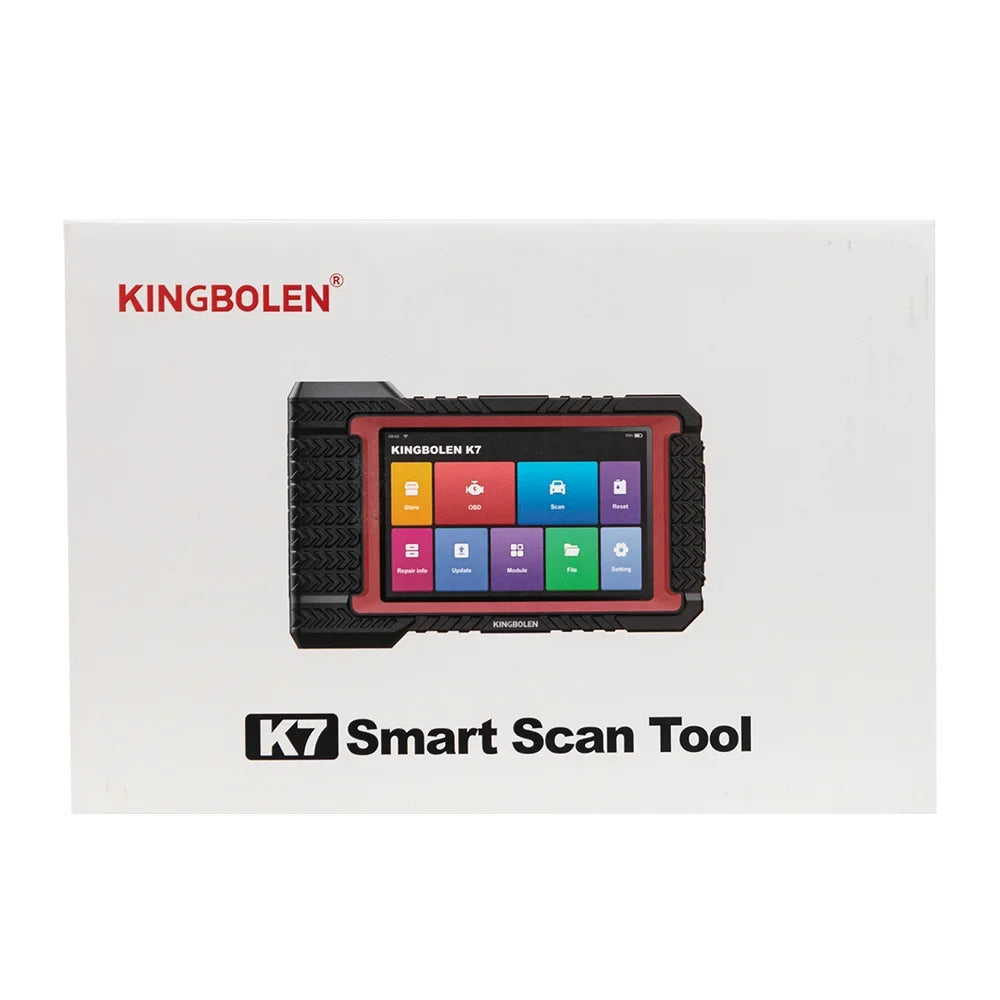

1pc * carton box
3pcs * Other Accessories

Shop by Category

Trending Now

Popular Products

Example product title

Example product title

Example product title

Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT

Free Shipping

Free Returns

Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT

Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT

Customer Reviews

Related Products

Recently Viewed Products

Before you leave...

20% off

CODESALE20

Trending Now

Popular Products

Example product title

Example product title

Example product title

Trending Now

Popular Products

Example product title

Example product title

Example product title

Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT

Share

Free Shipping

Free Returns

Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT

Lifetime Free Update KINGBOLEN K7 ALL System car Diagnostic Tools ECU Coding Active Test 28 Resets PK LAUNCH X431 CRP919E BT

Description

SPECIFICATIONS

Shipping

Shipping

Returns Policy

Returns Policy

Compare Color

Customer Reviews

Related Products

Recently Viewed Products

SIGN UP FOR OUR NEWSLETTER

Shop the look

Choose Options

Recently Viewed

Social

Edit Option

Have Questions?

Back In Stock Notification

Compare

Terms & Conditions

Before you leave...

20% off

CODESALE20

Trending Now

Popular Products
