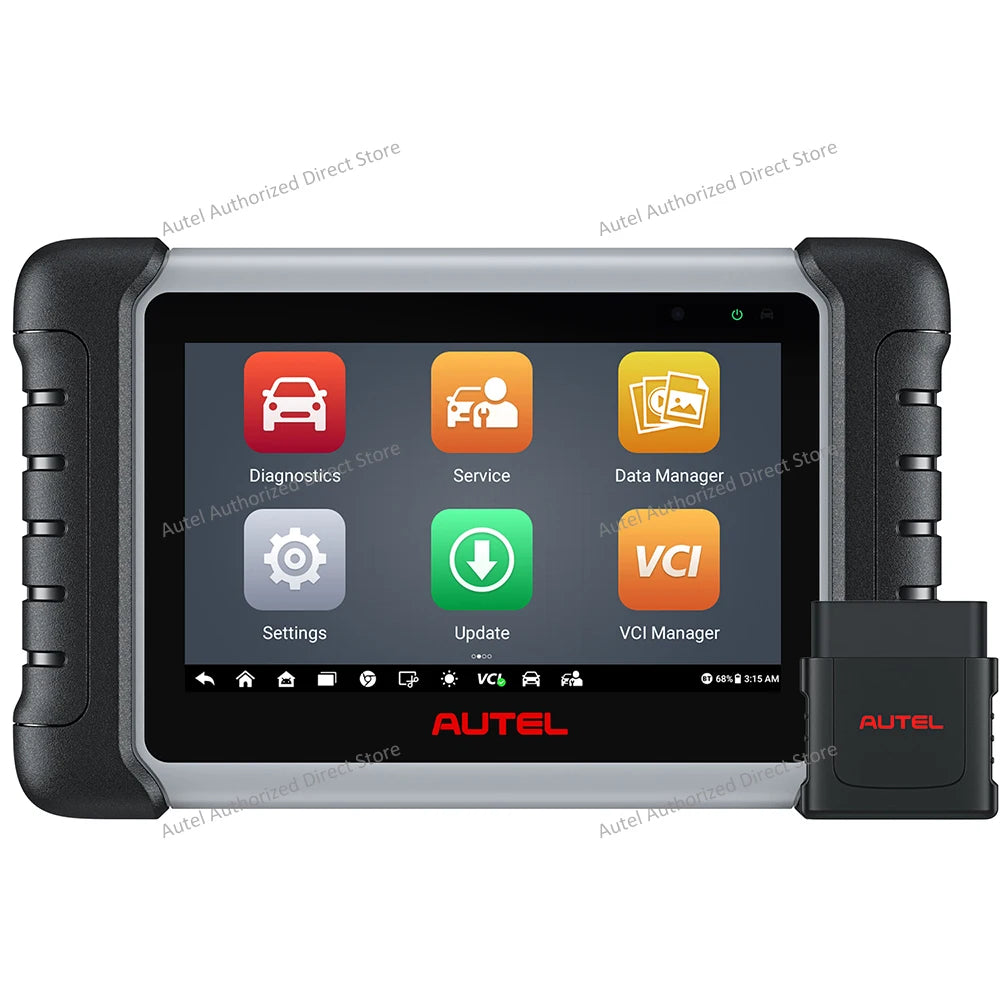

Autel MaxiCOM MK808BT PRO: All Systems Bi-directional & Active Test Scan Tool, Android 11, 2.4G & 5G WiFi, Upgrade of MX808S MK808S MK808BT MK808Z, 38+ Services, Support BT506 MV108S, FCA AutoAuth

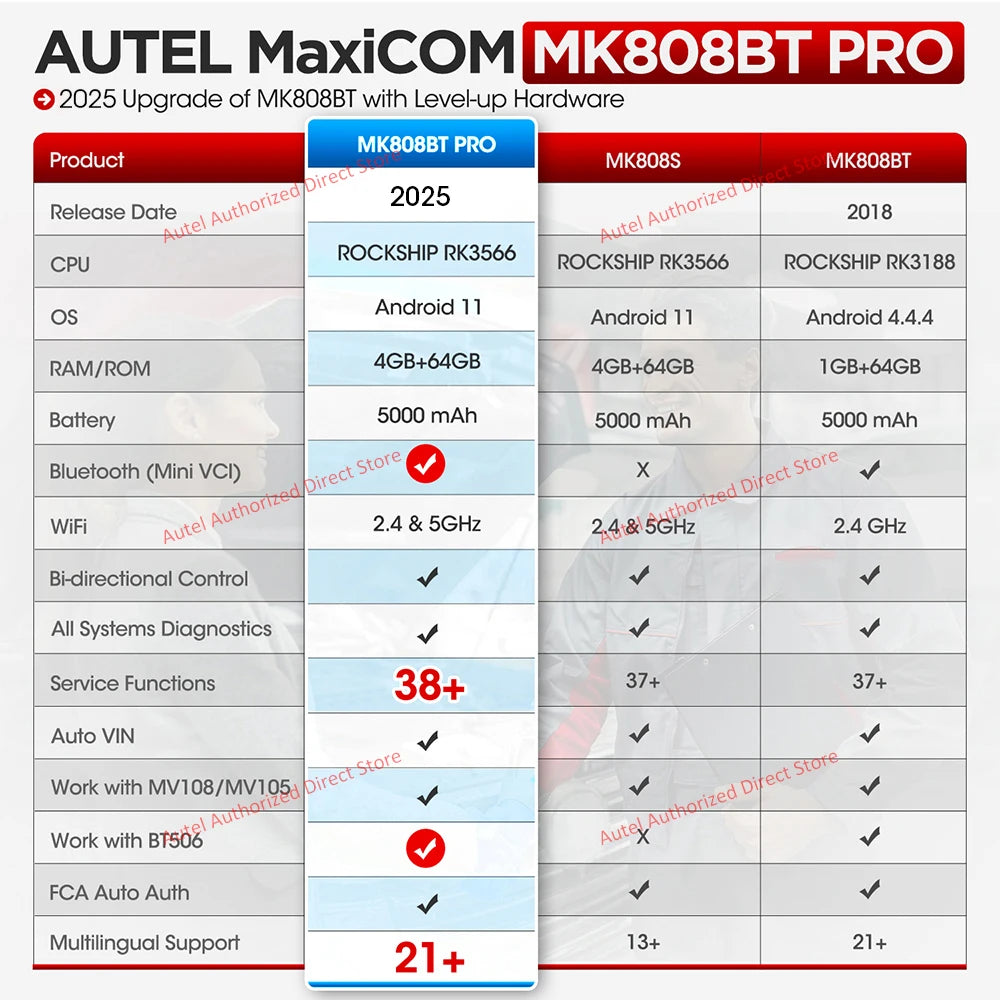

MK808BT PRO Upgraded hardware of MK808BT:

■ MK808BT PRO Hardware:
➢ CPU: Rockchip RK3566
➢ RAM: 4G
➢ ROM: 64G
➢ Battery Capacity: 5000mAh
➢ Android Version: Android 11.0
➢ Screen Size: 7inch
➢ Wifi: 2.4 & 5 GHz
➢ VCI: VCI MINI

■ MK808BT Hardware:
➢ CPU: Rockchip RK3188
➢ RAM: 1G
➢ ROM: 64G
➢ Battery Capacity: 5000mAh
➢ Android Version: Android 4.4.4
➢ Screen Size: 7inch
➢ Wifi: 2.4 GHz
➢ VCI: VCI MINI

What About MaxiCOM MK808BT PRO:

Featuring the powerful quad-core processor, and a 7.0-inch LCD capacitive touchscreen. Based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808BT Pro is your ideal auto diagnostics and service tool, providing you with superior functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

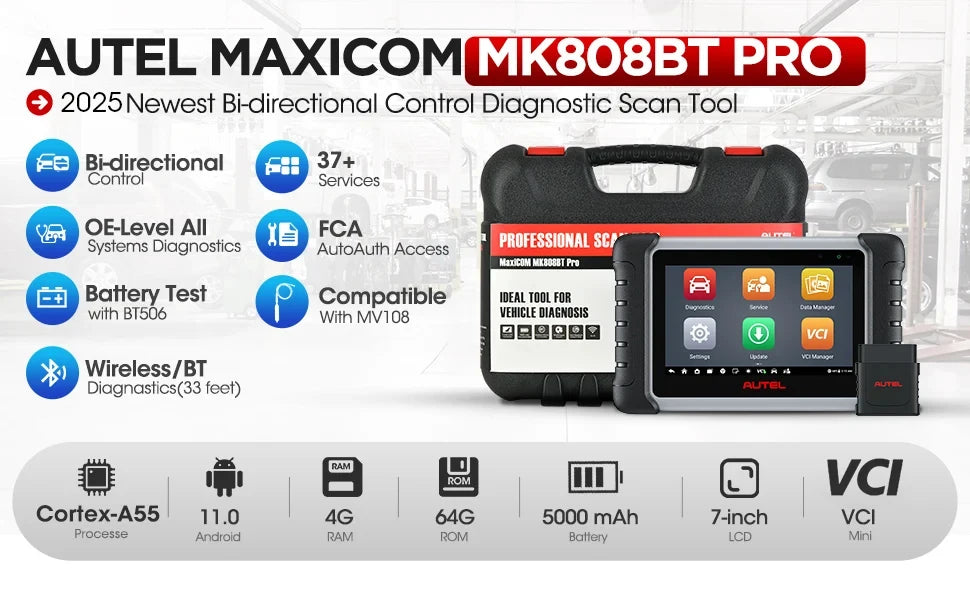

Highlights of MaxiCOM MK808BT PRO:

● 2025 Upgraded Wireless Ver. Of MK808S/ MK808Z/ MK808/ MX808S/ MX808;

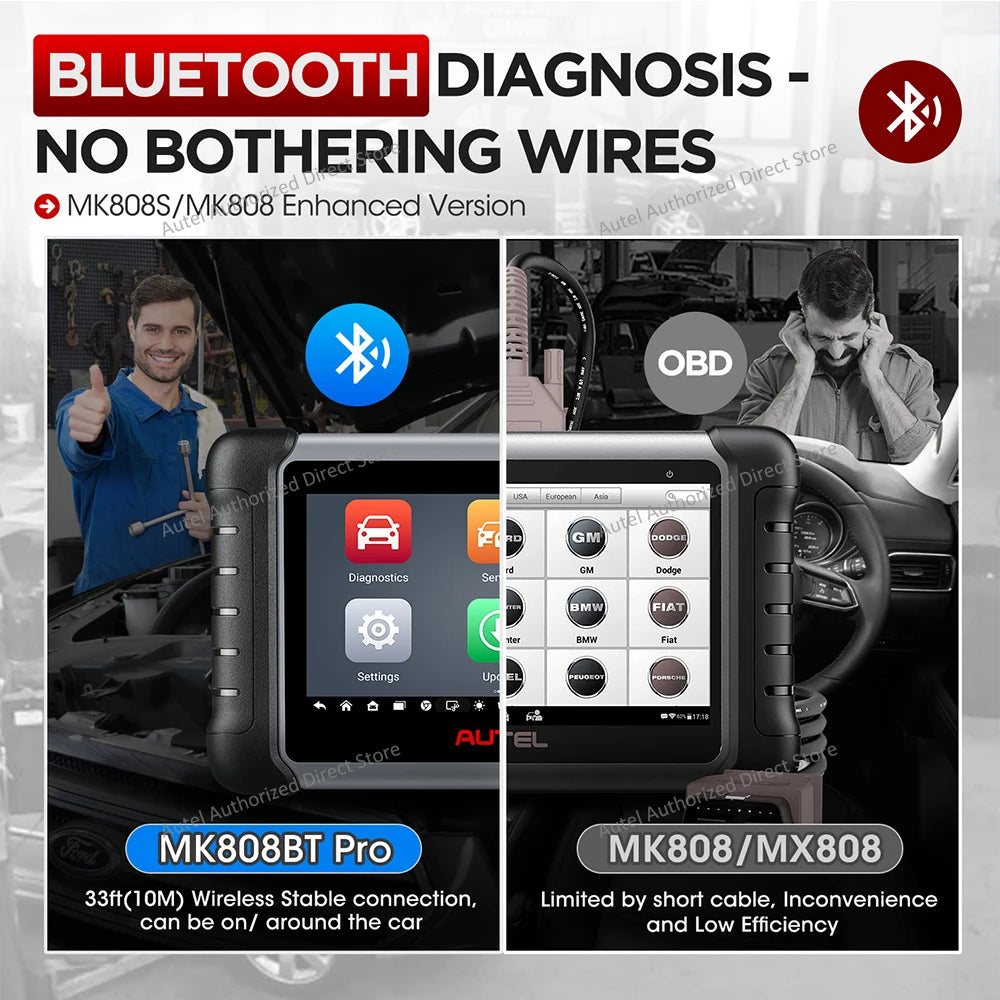

● 33ft(10m) wireless remote diagnostics;
● OE-Level All Systems Diagnostic;
● Bi-directional Control / Active Test;
● Support FCA Auto Auth for FCA Cars after 2017;
● Stable BT Connection, range up to 33 feet (10m);
● 38+ Maintenance Services;
● IMMO Keys for Asian vehicles that have low-grade anti-theft systems;
● 10,000+ Vehicle Coverage, 21+ Languages supported;
● Battery Test & Electrical System Analysis ( Work with BT506 );
● Work with Autel MV108 HD Inspection Camera
● Autel Cloud Management;
● One Click Wi-Fi Update.

Bi-Directional Control/Active Test:

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool MK808BT PRO can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.

Active tests are often widely performed on different parts, such as: A/C Configuration; Adaptive Headlamp Adjustment; Window Wipers Setting; Doors Turn on/off; Sunroof Switch on/off; Mirrors Folding/Unfolding; Active tests on Interior lights, inside mirrors, steering wheel heating, windows, horn, etc.

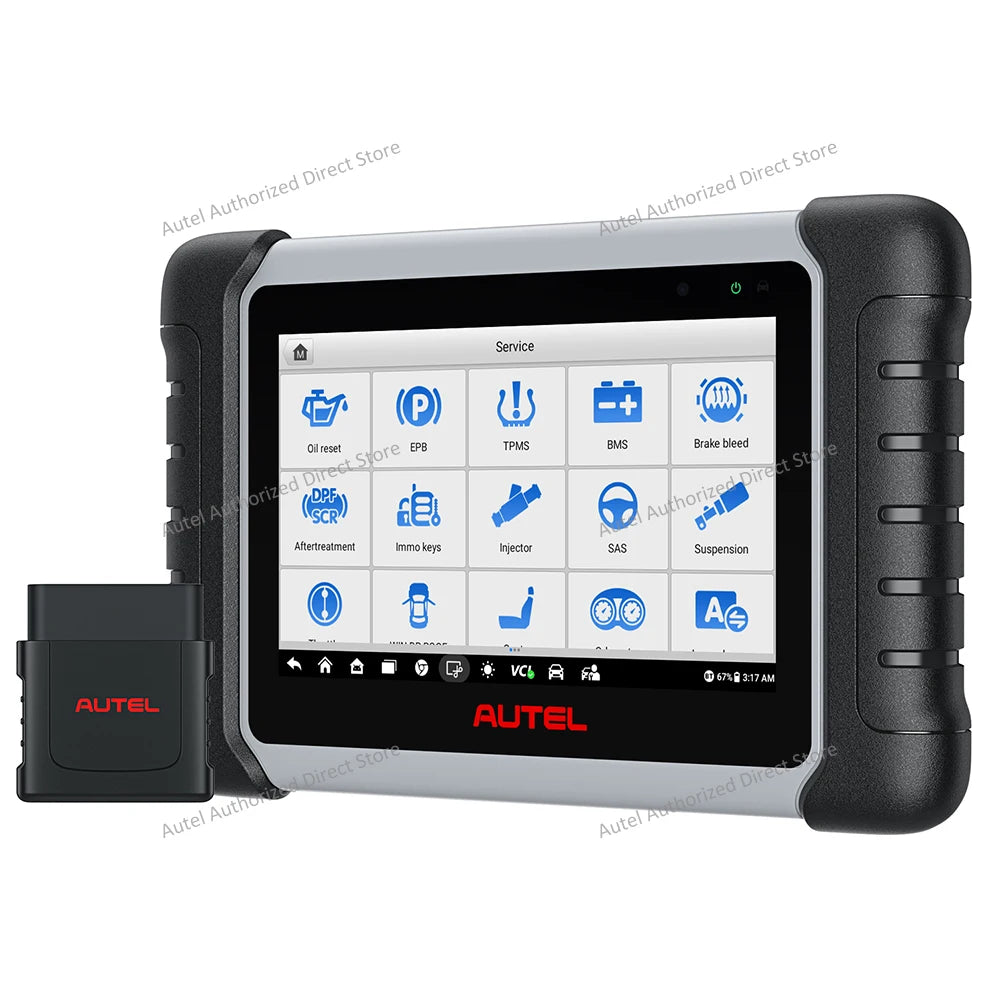

38+ Service Functions:

MK808BT PRO automotive diagnostic tool performs 38+ service functions, Such as Oil reset; EPB; TPMS; BMS; Brake bleed; Aftertreatment; Immo keys; Injector; SAS; Suspension; Throttle; WIN DR; ROOF; Seats; Odometer; Lang change; Headlamp; CHG tire size; TEC learn; ABSSRS; Cylinder; VGT learn; Speed & PTO; Clutch; Trans adaptation; Airbag reset; A/F Setting; Automatic Start/Stop; Electronic Water Pump start; EGR; VIN; FRM RESET; Transport Mode; HV Battery; ACC; A/C; Rain/Light Sensor; Reset control unit; CCS/ACC, and etc.

● Oil Reset: Turn off the oil light, and reset the service mileage.
● EPB Reset: Reset the brake pads after replacement.
● DPF Regeneration: Clear the blockage in the DPF filter, to meet emission standards.
● ABS Bleed: Cycling the ABS system to bleed the air out of the ABS system before traditional bleeding.
● Injector Coding: Coding the new injector after replacement.
● IMMO Keys: Add new keys, key learning, disable lost keys. (For Asian cars with low-grade IMMO system only)
● BMS: Reset a battery after you have replaced it.
● TPMS: Read TPMS data and point out issues related if there are any.

OE-Level Full Systems Diagnostics:

Same as the Snap-on scanner, Autel full-system diagnostic tool MaxiCOM MK808BT PRO works well on 150+ car makes and models worldwide (1996 and newer) to read/ clear codes, read ECU info., view Live Data, do active tests, and perform special functions for all available systems, allowing you to repair cars with dealer-like capabilities. This Autel diagnostic tool can

● ECU Information — provides the retrieved ECU information in detail. An information screen opens upon selection.
● Trouble Codes — contains Read Codes and Erase Codes. The former displays detailed DTC information retrieved from the vehicle control module, the latter allows you to erase DTCs and other data from the ECU.
● Live Data — retrieves and displays live data and parameters from the vehicle's ECU.
● Active Test — accesses vehicle-specific subsystem and components tests.
● Special Function — performs various component adaptations.

Autel MaxiCOM MK808BT PRO professional scanner to be a perfect choice since it will scan all available electronic systems of cars and troubleshoot the issue in minutes:

Engine, Auto Transmission, Anti-lock Brake System (ABS), Electronic Parking Brake (EPB), Battery Manage System (BMS), Tire Pressure Monitoring System (TPMS), Supplemental Restraint System (SRS), Immobilizer, Suspension, Cruise Control System, Steering Angle System, Air Conditioning System, Audio System, Body System, Gateway, etc.

OBDII Full Functions:

This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related. The OBD direct access option is also used for testing OBD II/EOBD compliant vehicles that are not included in the Diagnostics database.

● Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).
● Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
● I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
● Live Data: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
● View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
● O2 Sensor Monitor: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
● On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.
● Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
● Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

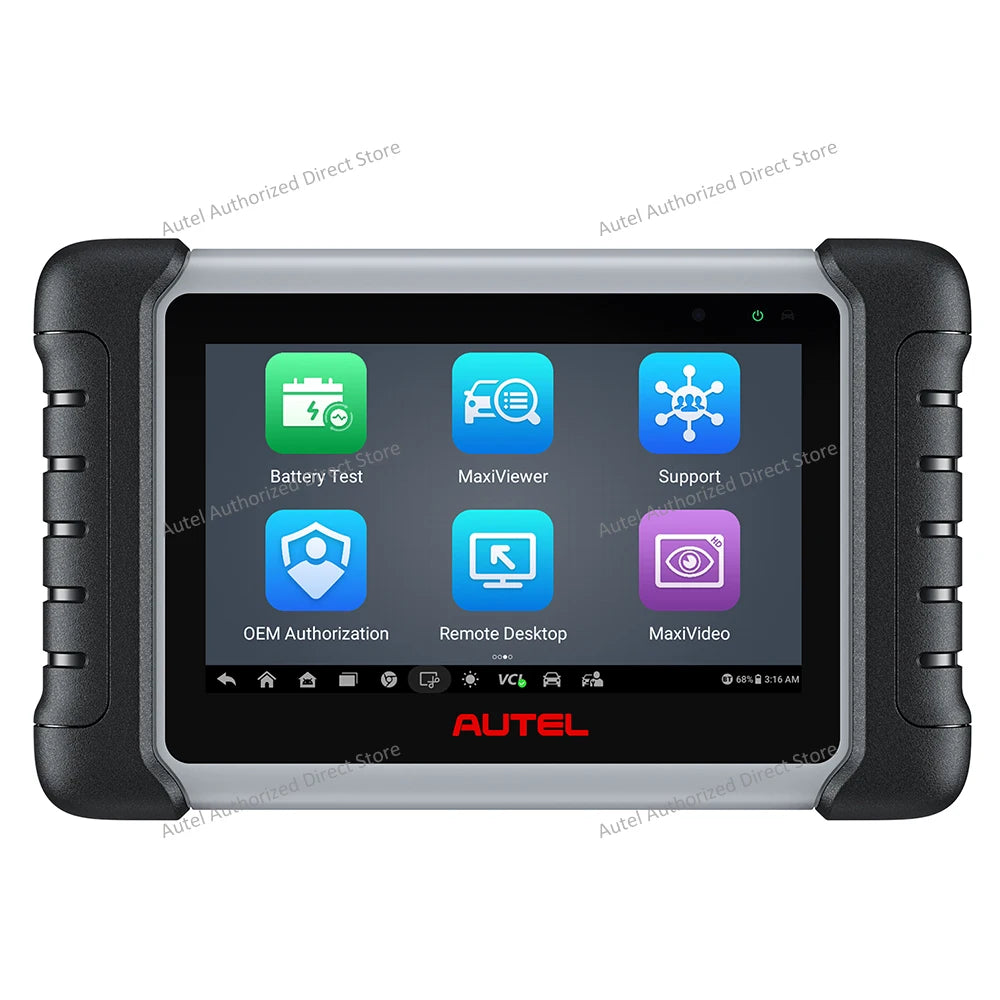

Newest Add-In Functions:

1.Special Function:

Special Function generally refers to the initial adaptation, self-learning or some auto detection function with many procedures that the vehicle is performed after maintenance or reset is done or some related component| in electronic control system is replaced, such as Crankshaft Position Sensor Learn.

2. Compatible with Autel MV108(S)/MV105(S) Inspection Camera:

Turn your MaxiCOM MK808BT PRO into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos.

3. Battery Test work with MaxiBAS BT506:

Autel automotive battery test tool BT506 can test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries. It can perform in-vehicle & out-of-vehicle tests to determine the health status of the battery, the starter, and the generator respectively.

4. Clound Report Management:

Device Management & Report Management, allow you to upload data or diagnostic reports to Autel Cloud without loss and share reports with customers through QR Code/ email/ text message easily.

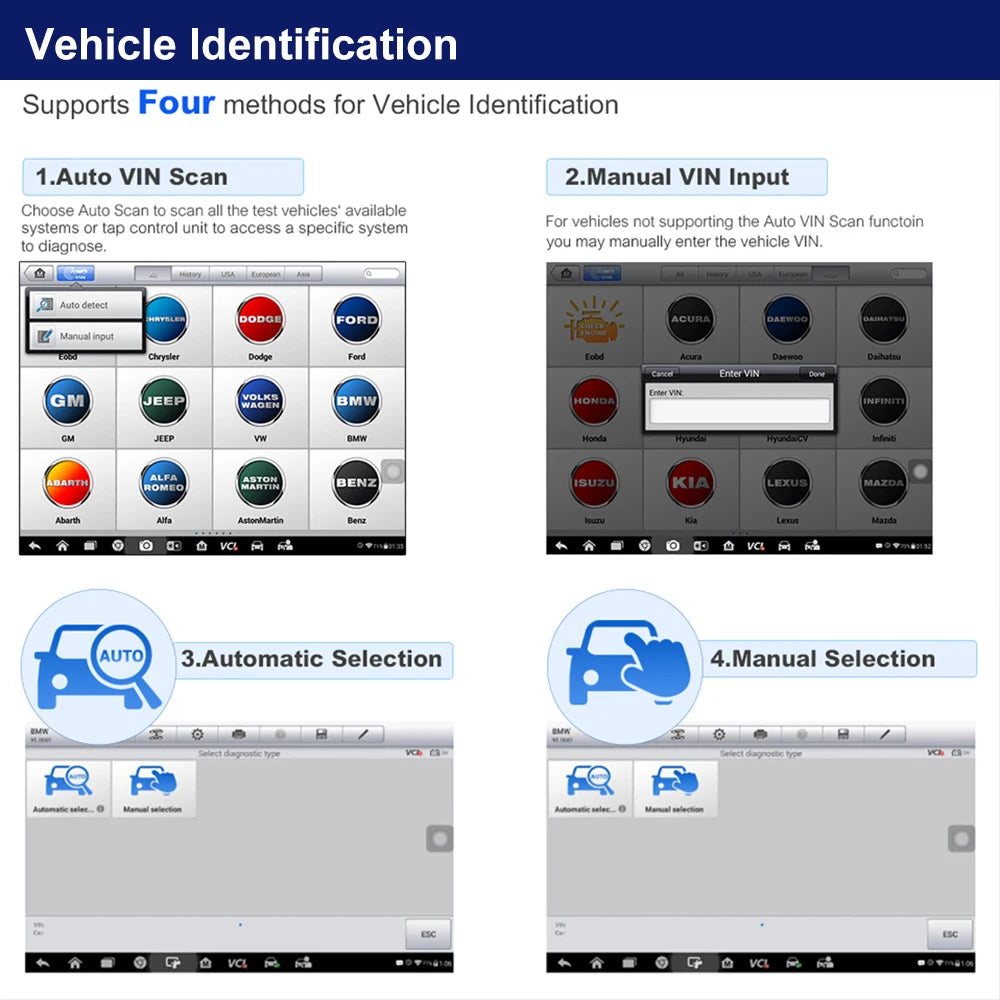

4 Methods for Vehicle Identification:

MK808BT PRO bidirectional diagnostics scan tool adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information at a single touch, like Brand, Year, Make, Model, etc. With the Auto VIN and Auto Scan feature combined, Autel MaxiCOM MK808BTPro can perform comprehensive diagnostics accurately and efficiently.

1. Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.

2. Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.

3. Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer

4. Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.

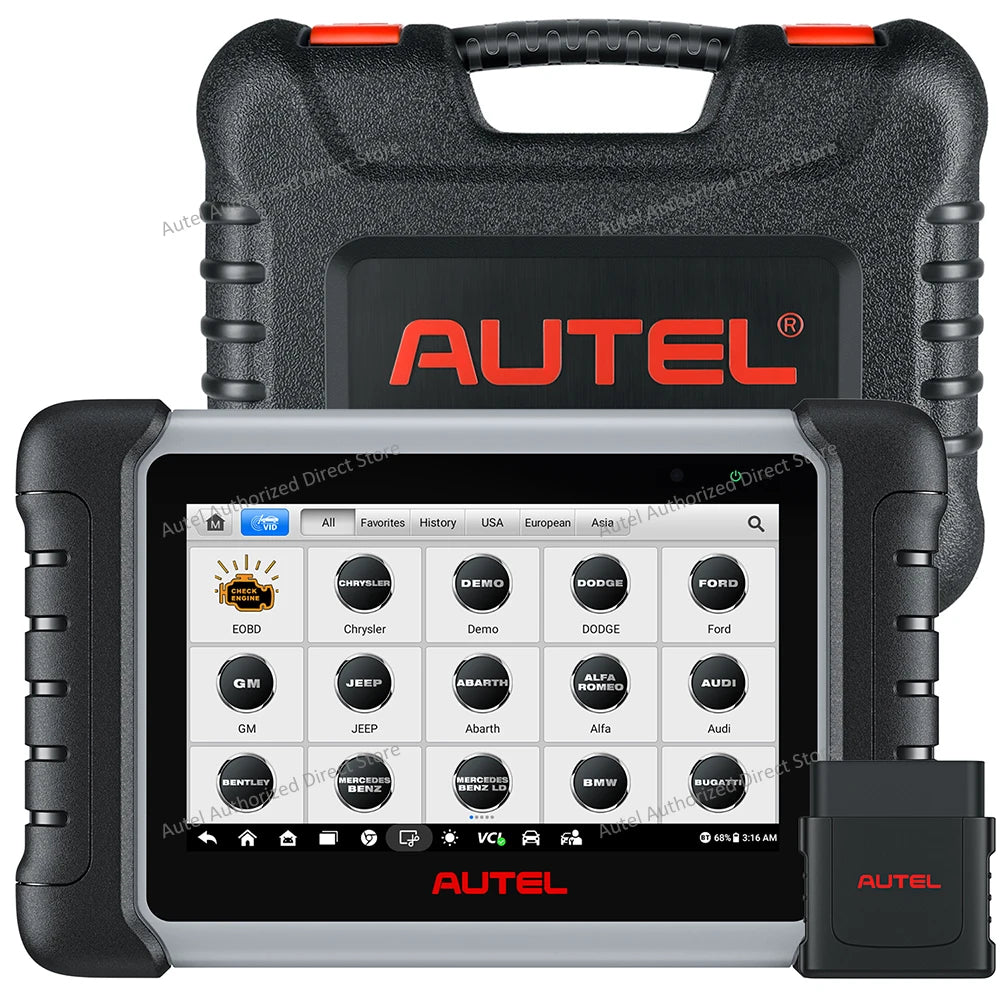

Broad Vehicle Coverage:

99% of Vehicles Coverage: No matter whether the vehicle you are going to diagnose is come from the US, Europe, Asia, or Australia, the diagnostic tool Autel MK808 can fulfill your demands. If you worry that the car models update from one year to another but the diagnostic tool cannot scan the latest model, take it easy, the one-click update feature is here to make the scanner always compatible with the latest model. This list is still growing as the industry progresses.

The Autel MaxiCOM MK808 PRO works well with: Acura, Audi, Benz, Bentley, BMW, Bugatti, Chevrolet, Chrysler, Corolla Gm, Holden, Ford, Honda, Hyundai, Infiniti, Kia, Land Rover, Isuzu, Jaguar, Lexus, Maybach, Mitsubishi, Nissan, Mazda, Mini, Opel, Porsche, Saab, Scion, Smart, Seat, Skoda, Sprinter, Subaru, Vauxhall, Volvo, Suzuki, Toyota, and Volkswagen vehicles, etc.

2024-2025 Latest Car Models:

Autel MK808BT PRO car scanner can diagnose some latest car models, such as Ford F-150 2022, Ford F-750 2022, Ford E-Series 2022, Dodge D2-Ram 3500 Pickup 2022, Ford F-650 2022, etc.

Support Various Protocols:

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

ABS Auto Bleeding:

MaxiCOM MK808BT PRO OBD2 Scanner comes with the hot function of ABS Brake Bleeding that enables technicians and home mechanics to bleed air out of the ABS module, saving you time and money!

Note:
1.You still need to bleed the air manually in the brake lines after ABS brake bleeding.
2.This function is not universally compatible with all vehicles.

key Fob Programming Tool:

Clear information of lost keys and adding new keys to prevent your vehicles from being stolen.

➢ Reset Key: Relearn the key
➢ Add New Key: Add extra key to the vehicle

Note: The IMMO Keys function is designed for Asian vehicles that have low-grade anti-theft systems. If you need professional programming tool, you can consider Autel KM100/ IM508/ IM608 (Pro). To check compatibility, please consult us through Amazon message system or Q/A.

Useful APPs for Shops and DIYs:

1.Shop Manager: You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.

2.Data Manager: In case of any issues while performing diagnostics or services functions, please reproduce the issue and go to Data Manager- Data Logging to upload data log to Autel server and send us the serial number(at the back of the unit) to follow up the case until it's resolved satisfactorily.

3.Remote Desk: You can directly get ad-hoc remote support from Autel via Team Viewer software.

4.Cloud Report Management: Allows you to upload diagnostic reports to Autel Cloud so you can share reports with customers through QR Code/ email/ text message directly, customers can view the reports anytime.

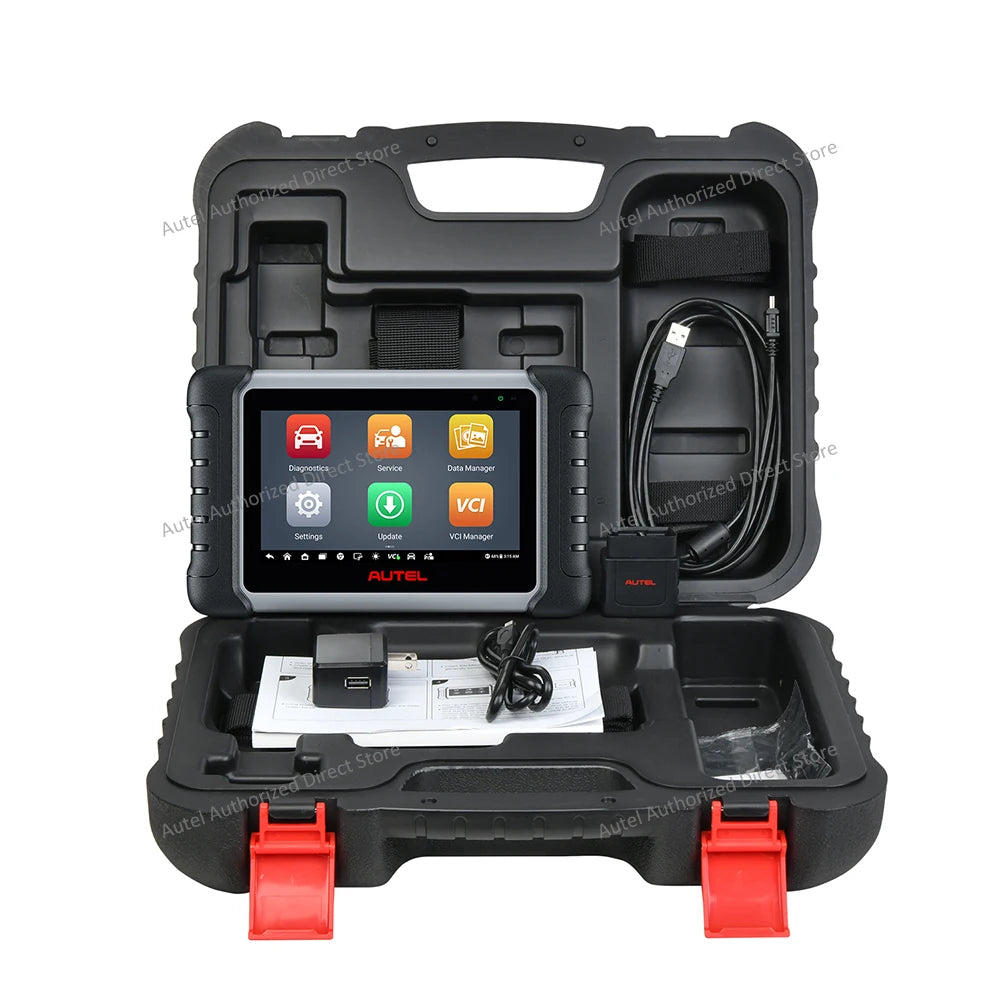

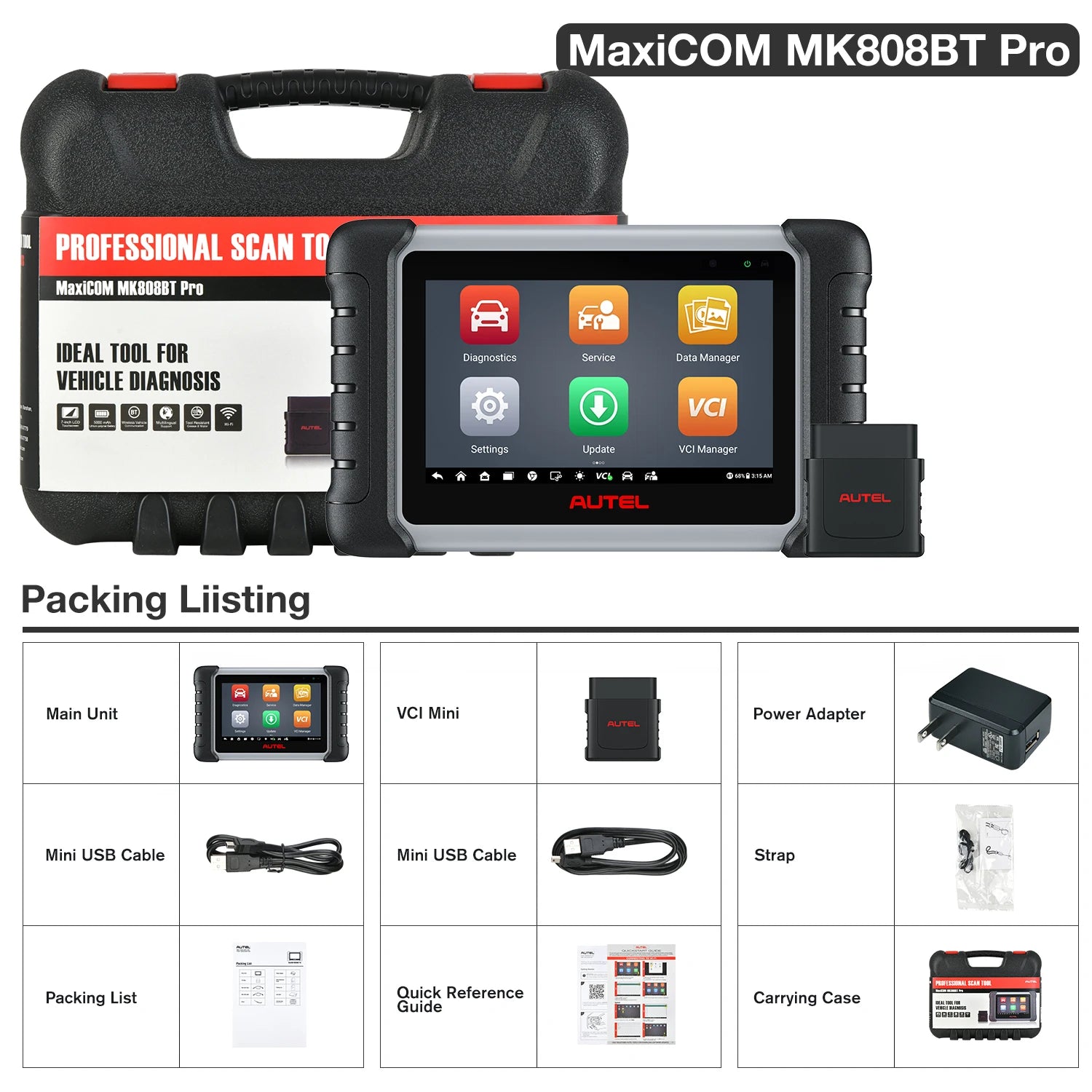

MK808BT PRO Package List:

1 x MK808BT PRO Tablet
1 x USB External Power Adapter_test
1 x USB Cable (for charging)
1 x USB Cable (for test)
1 x MaxiVCI Mini
1 x User Manual
1 x Quick Reference Guide
